Kevel Chock
[Search Related Products]
Specification of Kevel Chock:
Model Type: Kevel Chock
Dimensions(inches): 24Ħħ 30Ħħ 36Ħħ 42Ħħ 48Ħħ
Material: Cast Steel
Certificate: CCS/BV/LR/ABS/GL/RMRS/DNV/KR

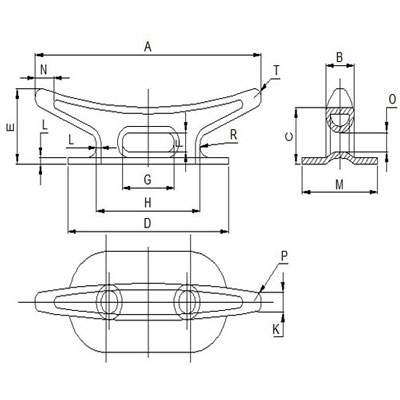

Drawing of Kevel Chocks:
Dimension(in) |
|||||||||||||||
A |
B |
C |
D |
E |
F |
G |
H |
K |
L |
M |
N |
O |
P |
R |
T |
24Ħħ |
3 |
4-1/2 |
17 |
6 |
1-1/2 |
5-1/2 |
11 |
1-1/2 |
1/2 |
8 |
2 |
1-1/2 |
9/16 |
1 |
3/4 |
30Ħħ |
4 |
5-5/8 |
20-1/4 |
7 |
2-3/8 |
6-7/8 |
14 |
3-1/4 |
1/2 |
9-1/2 |
2 |
2-3/8 |
1-1/4 |
1-3/8 |
7/8 |
36Ħħ |
5 |
6-3/4 |
23-1/2 |
8 |
3-1/4 |
8-1/4 |
17 |
4 |
9/16 |
11 |
2-1/2 |
3-1/4 |
1-1/2 |
1-3/4 |
1 |
42Ħħ |
6 |
7-7/8 |
26-3/4 |
9 |
4-1/8 |
9-5/8 |
20 |
4-3/4 |
5/8 |
12-1/2 |
2-3/4 |
4-1/8 |
1-7/8 |
2-1/8 |
1-1/8 |
48Ħħ |
7 |
9 |
30 |
10 |
10 |
11 |
23 |
5-1/2 |
3/4 |
14 |
4 |
5 |
2 |
2-1/2 |
1-1/4 |
