CB T38-1999 Double Roller Chock

CB/T 38-1999 Double Roller Chock

Marine chocks have multiple forms such as closed chock, open chock, no-roller chock, roller chock. It is mainly divided into two categories: no-roller chock and roller chock.Generally, marine chock is made by casting with intergral and modular forms. Marine cast chocks are normally mounted on the gunwale of the bow and poop. Roller chock can reduce the friction to mooring rope.

CB/T 38-1999 Double Roller Chock is marine cast steel roller chock. It has two rollers and is made strictly following the shipping standard CB/T 38-1999. It gets the approval of China Classification Society, American Bureau of Shipping etc.If you’re interested in our chocks, please feel free to contact us.

Specification :

Model Type: CB T38-1999 Double Roller Chock

Material: Steel

Technology: Casting

Standard: CB/T 38-1999

Certificate: CCS,DNV,ABS,BV,LR,RS,KR

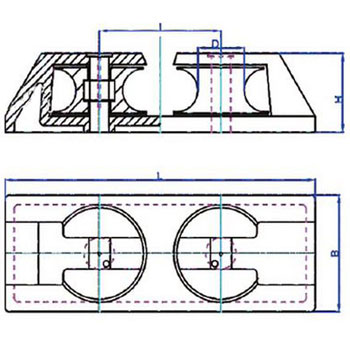

Drawing of CB T38-1999 Double Roller Chock:

CB T38-1999 Double Roller Chock

Unit:mm

公称尺寸 Diameter	最大破断负荷 Break Load(kN)	适用缆索最大直径 Rope Max Diameter			L	B	H	I	D	Weight(kg)
		钢索Wire Rope		合成纤维 pp-rope
		6×24	6×37	合成纤维 pp-rope
75	23.3	7.4	—	12	400	150	116	150	75	18
100	52.5	11	—	18	530	200	147	200	100	41
125	93.4	15	—	24	650	250	173	250	125	76
150	145.8	18.5	—	30	780	300	201	300	150	132
200	246.6	24	—	40	1100	370	251	400	200	264
250	373.6	30	—	48	1240	470	300	500	250	498
300	472.7	33.5	—	56	1480	550	353	600	300	798
350	583.5	37.5	34.5	64	1690	640	386	690	350	1134
