Panama Chock JIS F-2017 Type AP

[Search Related Products]

Panama Chock JIS F-2017 Type AP

Panama Chocks

Panama chocks are very important mooring equipment. It bears tremendous loads when mooring the vessels. We provide deck mounted Panama chocks (JIS F 2017-1982 type AC,AP),bulwark mounted Panama chocks (JIS F 2017-1982 type BC,BP) and Type U.S. Panama chocks. If you¡¯re interested in our chocks, please feel free to contact us.

Specification :

Model Type: Panama Chock JIS F-2017 Type AP

Material: Cast Steel

Nominal Size:310mm,360mm

Weight: 190kg~207kg

Welded Position: Deck

Standard: JIS F 2017-1982

Certificate: CCS,DNV,ABS,BV,LR,RS,KR

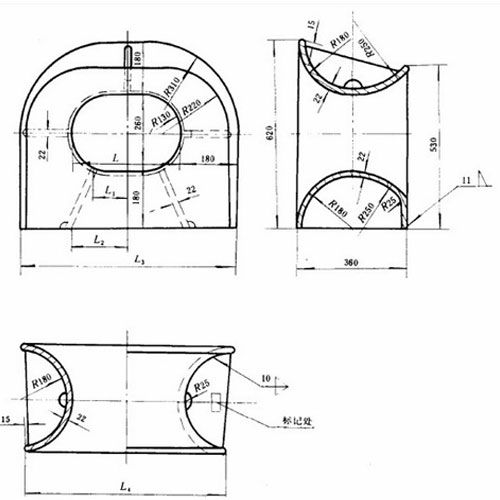

Drawing of Panama Chock JIS F-2017 Type AP:

Panama Chock JIS F-2017 Type AP

Size(mm)L

L1

L2

L3

L4

Weight(kg)

310

85

155

670

620

190

360

110

180

720

670

207
