Mooring Chock CB34-76 Type A
[Search Related Products]

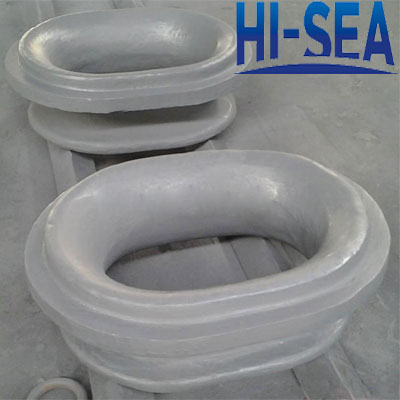

Mooring Chock CB 34-76
Mooring chock, welded on deck or bulwark, is used to guide and control the mooring ropes to a certain direction. Its surface is polished smoothly in order to reduce the friction of the rope. CB*34-76 marine mooring chocks have four types: CB34-76 type A, type B, type C, type D. If you¡¯re interested in our mooring chocks, please feel free to contact us.
Specification :
Model Type: CB*34-76 Type A
Material: Cast Steel
Weight: 16.4kg~171kg
Standard: CB*34-76
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

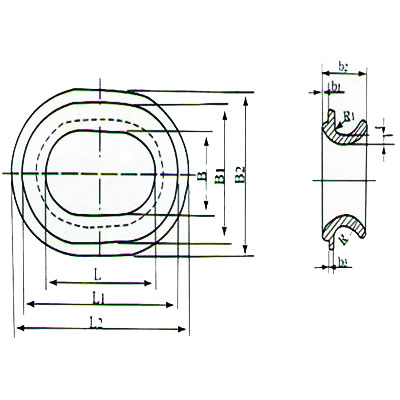

Drawing of Mooring Chock CB 34-76 Type A:
Mooring Chock CB 34-76 Type A:
Unit:mm
Max. Steel Rope Dia |
Hemp Rope C |
Nylon Rope Dia |
L |
L1 |
L2 |
B |
B1 |
B2 |
t |
b1 |
b2 |
b3 |
R |
R1 |
Bulwarks Opening Size L3¡ÁB3 |
Weight(kg) ¡Ö |
18.5 |
160 |
35 |
200 |
300 |
340 |
130 |
230 |
270 |
18 |
18 |
110 |
9 |
58 |
20 |
310¡Á240 |
16.4 |
22.5 |
200 |
45 |
260 |
400 |
450 |
170 |
310 |
360 |
22 |
25 |
160 |
10 |
84 |
30 |
415¡Á325 |
40.4 |
28.0 |
230 |
55 |
320 |
465 |
515 |
200 |
345 |
395 |
25 |
28 |
175 |
12 |
95 |
30 |
480¡Á360 |
57.0 |
33.5 |
270 |
70 |
400 |
572 |
632 |
260 |
430 |
490 |
30 |
32 |
200 |
15 |
108 |
35 |
592¡Á450 |
95.6 |
43.5 |
325 |
90 |
480 |
685 |
755 |
310 |
525 |
595 |
35 |
35 |
240 |
18 |
126 |
45 |
705¡Á545 |
171.0 |
