DIN81915 Type A Chock

[Search Related Products]
DIN81915 Type A Chock

specific requirement summary explaining its technology introduction:

1: the mooring chock body material selection in accordance with GB 8162 204 seamless steel tube. Can also be specified in GB 712 A grade of steel plate is bend into.

2: Stainless steel clad plate selection in accordance with GB 4237 use 1Cr18Ni9Ti stainless steel plate .

3: the mooring chock body at intersecting line and the outer rim, welding surface clean and no crack, war page, skew, Cut straight to sharp edges.

4: mooring chock stainless steel clad plate shall be flat and body joint, the weld shall be no pores, cracks, burrs and lack of

Depression.

5: mooring chock completion except stainless steel clad plate, should brush rustproof paint. After loading the goods on board according to the requirements of ship hull paint.

DIN81915 Type A Chock

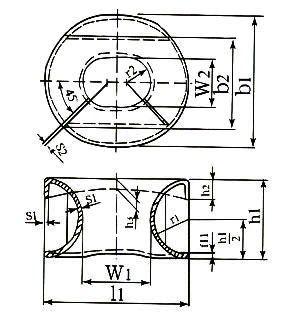

DIN81915 CHOCK TYPE A

Specifications

Type

Max. Proof load

b1

e

f

h1

l1

w1

w2

Weight (kg)

1

10KN

250

125

15

160

285

125

90

19.5

2

20KN

315

157.5

18

200

360

160

115

29

3

30KN

390

195

21

250

450

200

140

48

5

50KN

480

240

24

300

550

250

180

85

8

80KN

585

292.5

27

360

680

320

225

136

12

120KN

710

355

30

440

840

400

270

211

20

200KN

840

420

33

520

1020

500

320

325

32

320KN

1100

550

-

700

1300

600

400

840
