DIN 81915 Chock Type B
Marine chocks,mounted on deck or bulwark, are closed chocks which are used to control the position of mooring rope. It is casted to be round or oval shapes.DIN 81915 Chock Type B is made according to German standard DIN81915. It has horns on each side. It has three optional size,D3,D5,D8. We also have other types of DIN81915 chocks. If you¡¯re interested in our chocks, please feel free to contact us.
Specification :
Model Type: DIN 81915 Chock Type B
Material: Cast Steel
Technology: Casting
Standard: DIN 81915
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

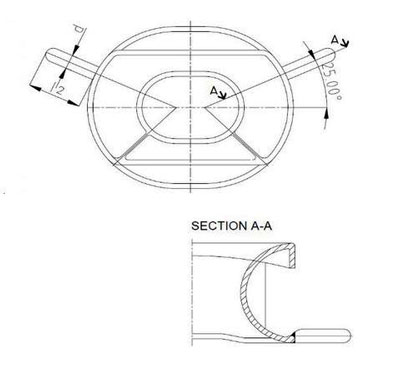

Drawing of DIN 81915 Chock Type B:
Unit:mm
Type |
Wire Load(kN) |
b1 |
b2 |
d |
e |
f ¡Ö |
h1 |
h2 |
h3 |
l1 |
l2 |
r1 |
r2 |
w1 |
w2 |
Weight(kg) |
||||
GGG |
GS |
GGG |
GS |
|
||||||||||||||||
3 |
30 |
390 |
275 |
40 |
195 |
21 |
250 |
75 |
32 |
450 |
140 |
R125 |
R70 |
200 |
140 |
39 |
42 |
44 |
48 |
2 |
5 |
50 |
480 |
340 |
45 |
240 |
24 |
300 |
80 |
38 |
550 |
160 |
R150 |
R90 |
250 |
180 |
69 |
74 |
78 |
85 |
3 |
8 |
80 |
585 |
415 |
50 |
292.5 |
27 |
360 |
90 |
45 |
680 |
180 |
R180 |
R112.5 |
320 |
225 |
112 |
120 |
127 |
136 |
4 |
