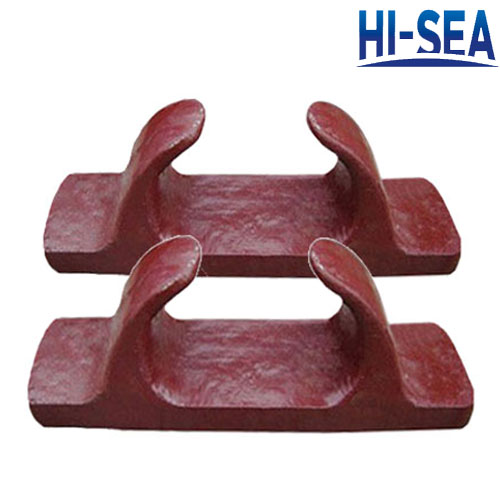

Open Chock JIS F-2006 Type FC

Open Chock JIS F-2006

Open chocks have two types: JIS F-2006 type SC and JIS F-2006 type FC. Type SC is casted steel.Type FC is casted iron. Both types are deck mounted. We provide various mooring chocks.If you¡¯re intersted in our chocks, please feel free to contact us.

Specification :

Model Type: JIS F-2006 Type FC

Material: Cast Iron

Nominal Size: 150mm~420mm

Weight: 12kg~130kg

Certificate: CCS,DNV,ABS,BV,LR,RS,KR

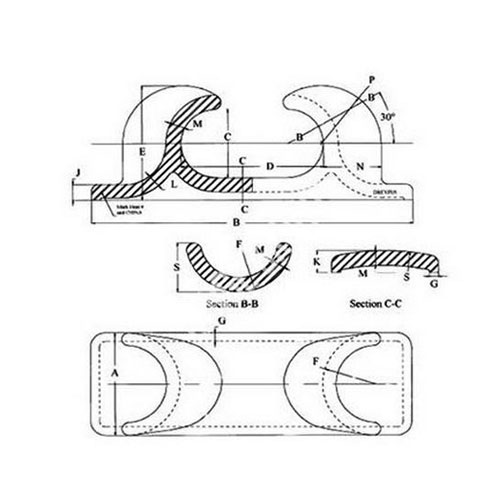

Drawing of JIS F-2006 Type FC:

Open Chock JIS F-2006 Type FC

JIS F-2006 Type FC(cat iron):

Model

Size

A

(inch)

B

(inch)

C

(inch)

D

(inch)

E

(inch)

F

(inch)

G

(inch)

J

(inch)

K

(inch)

L

(inch)

M

(inch)

N

(inch)

P

(inch)

S

(inch)

001

9¡±

27-3/4

6

12

10-1/8

4-1/2

7/8

1-1/2

2-1/16

1-1/8

1-3/8

4-7/8

5-1/16

4-1/4

002

10¡±

30-3/8

6-5/8

13-1/4

11-1/8

5

1

1-9/16

2-3/16

1-1/4

1-1/2

5-7/46

5-3/8

4-3/4

003

12¡±

36

8

16

13-3/8

6

1-1/4

1-7/8

2-5/8

1-1/2

1-3/4

6-1/2

6-3/4

5-3/4

004

14¡±

42

9-3/8

18-3/4

15-5/8

7

1-1/4

1-1/4

3-1/16

1-3/4

2

7-5/8

7-7/8

6-11/16

005

16¡±

48

10-3/4

21-1/2

17-3/4

8

1-3/8

1-3/8

3-3/8

2

2-1/4

8-5/8

9

7-3/4

006

18¡±

54

12

24

20

9

1-1/2

1-1/2

3-7/8

2-1/4

2-1/2

9-3/4

10-1/8

8-5/8
