NS2590 Mooring Chock

[Search Related Products]

NS2590 Mooring Chock

NS2590 Mooring Chock

Marine chocks, also called ¡°bulwark mounted chock¡±, are closed chocks which are used to control the position of mooring rope. It is casted to be round or oval shapes.

NS2590 mooring chock is made of cast steel. Its polished smooth surface helps reduce the friction of mooring ropes. NS2590 mooring chock follows the strict quality control. It gets the approval of China Classification Society. If you¡¯re interested in our chocks, please feel free to contact us.

Specification :

Model Type: NS2590 Mooring Chock

Material: Cast Steel

Technology: Casting

Standard: NS2590

Certificate: CCS,DNV,ABS,BV,LR,RS,KR

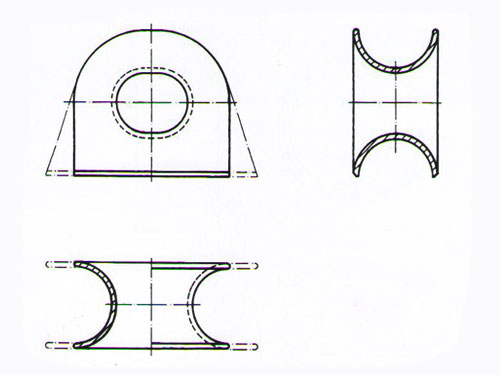

Drawing of NS2590 Chock:

NS2590 Mooring Chock

Size(mm)

Weight(kg)

A300¡Á250

110

A400¡Á250

175

B300¡Á250

109

B400¡Á250

174
