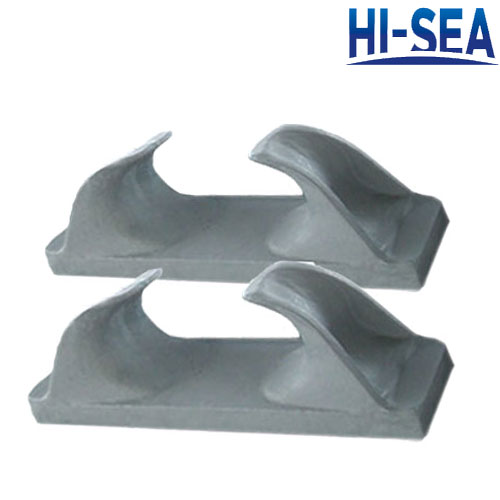

Open Chock JIS F-2006 Type SC
[Search Related Products]
Open Chock JIS F-2006
Open chocks have two types: JIS F-2006 type SC and JIS F-2006 type FC. Type SC is casted steel.Type FC is casted iron. Both types are deck mounted. We provide various mooring chocks.If you¡¯re intersted in our chocks, please feel free to contact us.
Specification :
Model Type: JIS F-2006 Type SC
Material: Cast Steel
Nominal Size: 150mm~400mm
Weight: 11kg~98kg
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

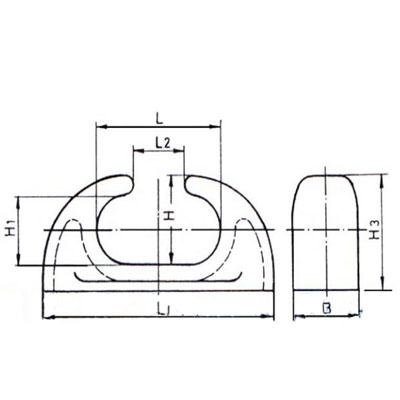

Drawing of Open Chock JIS F-2006 SC:
JIS F-2006 Type SC(Cast Steel):
Nominal Size(mm) |
Dimensions(mm) |
Mass(kgs) |
Dia. Of Rope |
||||||||
L |
L1 |
L2 |
B |
H |
H1 |
H3 |
Wire 6*24 |
Hemp |
P.P |
||
150 |
150 |
280 |
60 |
80 |
90 |
70 |
118 |
11 |
12 |
32 |
20 |
200 |
200 |
380 |
84 |
110 |
116 |
92 |
151 |
18 |
14 |
38 |
24 |
250 |
250 |
460 |
114 |
130 |
136 |
108 |
178 |
30 |
16 |
42 |
28 |
300 |
300 |
540 |
140 |
150 |
160 |
124 |
209 |
44 |
18 |
50 |
32 |
350 |
350 |
620 |
170 |
170 |
180 |
140 |
235 |
64 |
20 |
55 |
36 |
400 |
400 |
700 |
200 |
200 |
200 |
160 |
263 |
98 |
22 |
60 |
42 |
