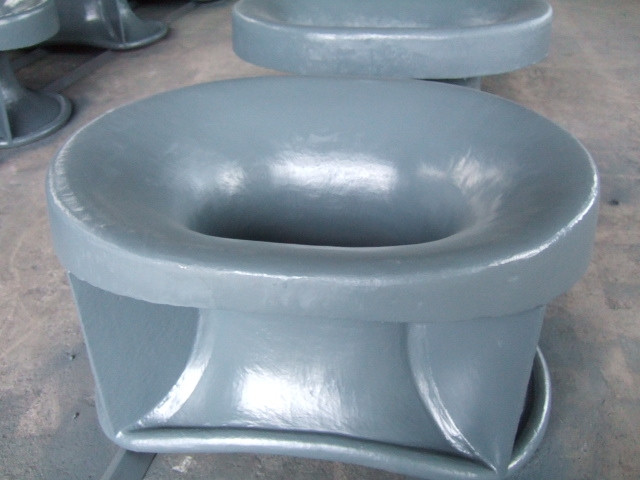

JIS F2007 Mooring Bulwark Chock Type B

Technical information mooring chock

Can be called 'bulwark chock', is located in the bulwarks, with closed hole shaped fairlead limit position of the cable are derived. Its basic shape is circular, oval

The mooring chock is a very important mooring equipment. In the process of mooring ship, it bears huge loads. Usually the ship bollards, mooring chock for the whole ship mooring use. The general bow and stern ofship blocks the bollard fairlead, quantity large. Of intermediate section above without or bollards, fairlead rarely.Fairlead is oblique chock more insurance, because it is closed, the cable will not jump out .

JIS F2007 Mooring Bulwark Chock Type B

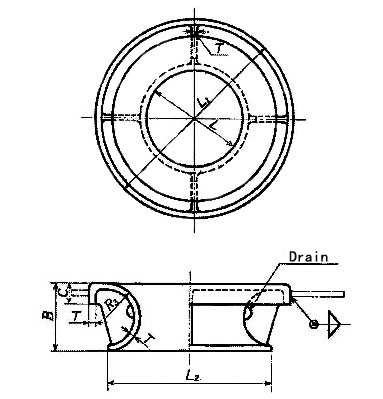

JIS F2007 MOORING BULWARK CHOCK (TYPE B)

Specifications of JIS F 2007-1976 Type B

Type

(mm)

L

L1

L2

B

C

R3

T

Weight

(kg)

Manila Rope (Dia.)

Wire Rope (Dia.)

150

150

318

288

144

42

72

12

17.5

45

16(6x12)

200

200

380

346

155

44

78

12

23.5

50

18(6x12)

250

250

450

414

169

52

85

15

37.5

60

20(6x12)

300

300

510

470

179

55

90

15

45.5

70

22.4(6x12)

JIS F2007 Mooring Bulwark Chock Type B

Mooring Chocks
