Single Point Mooring Pipe JIS F-2030 Type A

Marine chocks, mounted on deck or bulwark, are closed chocks which are used to control the position of mooring rope. It is casted to be round or oval shapes. Single Point Mooring Pipes has two types.Both are made according to the JIS F 2030-1978 (Japanese Industrial Standards F). JIS F-2030 Type A is marine bulwark mounted chock. If you’re interested in our chocks, please feel free to contact us.

Specification :

Model Type: JIS F 2030 Type A

Nominal Size: 400mm~800mm

Weight: 210kg~880kg

Material: Cast Steel

Standard: JIS F 2030-1978

Certificate: CCS,DNV,ABS,BV,LR,RS,KR

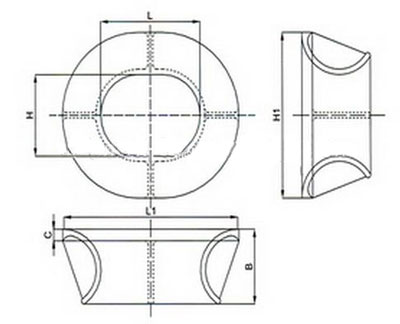

Drawing of Single Point Mooring Pipe JIS F-2030 Type A:

Single Point Mooring Pipe JIS F-2030 Type A

Nominal Size(mm)	L	L1	H	H1	B	C	Weight(kg)
400	400	780	300	680	350	65	210
500	500	940	400	840	400	70	340
600	600	1100	450	950	450	75	490
700	700	1260	500	1060	500	80	600
800	800	1420	600	1220	550	85	880
