CB T38-1999 Three Roller Chock

CB/T 38-1999 Three Roller Chock

Marine chocks have multiple forms such as closed chock, open chock, no-roller chock, roller chock. It is mainly divided into two categories: no-roller chock and roller chock.Generally, marine chock is made by casting with intergral and modular forms. Marine cast chocks are normally mounted on the gunwale of the bow and poop. Roller chock can reduce the friction to mooring rope.

CB/T 38-1999 three roller chock is marine cast steel roller chock. It has three rollers and is made strictly following the shipping standard CB/T 38-1999. It gets the approval of China Classification Society, American Bureau of Shipping etc.If you¡¯re interested in our chocks, please feel free to contact us.

Specification :

Model Type: CB/T 38-1999 Three Roller Chock

Material: Steel

Technology: Casting

Standard: CB/T 38-1999

Certificate: CCS,DNV,ABS,BV,LR,RS,KR

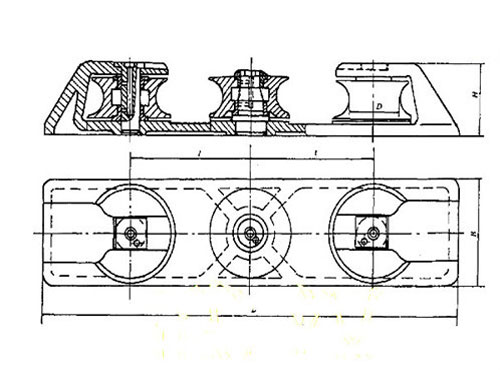

Drawing of CB T38-1999 Three Roller Chock:

CB T38-1999 Three Roller Chock

Unit:mm

Nominal

Max Break KN

Steel Rope

Rope

L

B

H

L

D

Weight(kg)

75

23.3

7.4

12

550

170

116

150

75

27

100

52.5

11

18

750

200

147

210

100

60

125

93.4

15

24

920

250

173

260

125

116

150

145.8

18.5

30

1120

300

201

320

150

198

200

246.6

24

40

1420

370

251

410

200

398

250

373.6

30

48

1780

470

300

520

250

767

300

472.7

33.5

56

2120

550

353

620

300

1240

350

583.5

37.5

64

2440

640

386

720

350

1915
