Three Roller Chock

The definition and the material chock

Chock :guide cable clamp fairlead. In order to change the direction of the cable and reduce friction between the hull and cable. Fairleader roller and belt roller divided into two categories, no roller chock according to its opening types can be divided into vertical and oblique type two; roller chock with one to three drum, sometimes with more than three. Chock made of cast iron or cast steel, usually installed on the deck of a ship deck and bulwark top.

Three Roller Chock

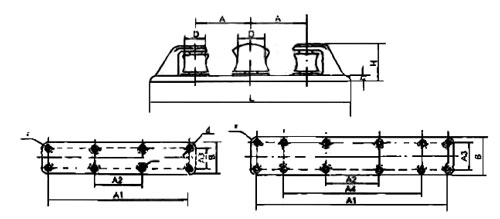

CB*39-66 Cast Fairlead with Three Rollers


unit: mm

Diameter of Wheel

Max Diameter of Tightwire

Circumference of Rope

L

B

H

h

r

A

A1

A2

A3

A4

d

Screw

NO.

Weight(kg)

Cast

iron

Cast

steel

Cast

iron

Cast

steel

Cast

iron

Cast

steel

150

20.6

225

1520

280

250

235

55

40

45

420

1430

480

190

33

8

288

266

170

30.5

250

1660

310

273

260

58

45

45

460

1570

550

220

33

8

361

352

185

33.5

275

1880

340

285

270

60

45

50

500

1700

420

240

1250

33

12

454

435

200

37.5

300

1930

360

295

280

65

50

50

530

1830

530

260

1330

33

12

568

522

230

43.5

325

2170

400

320

305

65

50

50

590

2070

560

300

1480

33

12

804

760

250

48.5

350

2340

420

340

325

70

55

55

640

2230

640

310

1640

39

12

1049

1051
