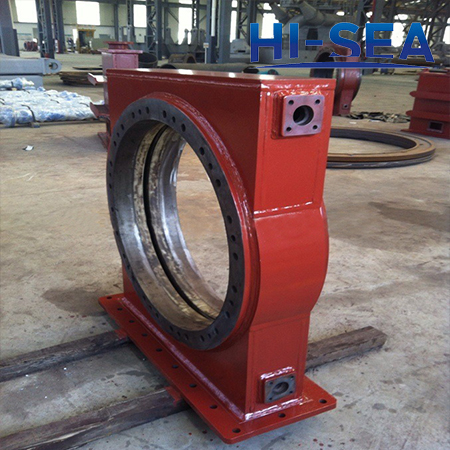

Dredge Gate Valve
Hi-sea Dredge Gate Valve is to open and close pipe lines for slurry transportation on dredge vessels or ships.The diameters is from 250 to1400mm.It has low pressure (8kPa),medium pressure (15kPa) and high pressure (15kPa).The design is easy for installations.The valves has high wear-resistance feature.Our dredge gate valve can be customized according to your requests.For more information,please contact us freely.
The main features are as follows:
1.The gate valves are designed to cope with highly abrasive slurry and to open and close smoothly in severe operational environments.
2.Reinforced rubber ring seals are installed for a perfect seal. The rubber seal provides an efficient and free passage of slurry mixture in the pipeline when the slide is open.
3.A polished knife gate is installed, made out of stainless steel.
4.The gate valves are equipped with electric open/closed sensors.They are designed to be maintenance friendly.
5.The proven design and technology are widely used in the dredging industry.
6.Special dimensional requirements such as mounting dimensions of the gate valve can be met upon request.
Specifications:
Pipe Inside |
Flange (mm) |
Bolt (mm) |
Total Height (mm) |
Body Height (mm) |
Breadth (mm) |
Thickness(mm) |
Diameter (mm) |
(O.D./P.C.D./ Hole Dia) |
(Qty./Size) |
||||
250 |
395/350/22 |
12/M20 |
1452 |
885 |
435 |
192 |
300 |
445/400/22 |
12/M20 |
1617 |
1000 |
500 |
192 |
350 |
505/460/22 |
16/M20 |
1807 |
1140 |
590 |
220 |
400 |
565/515/26 |
16/M20 |
2007 |
1290 |
670 |
234 |
450 |
615/565/26 |
20/M24 |
2187 |
1420 |
735 |
242 |
500 |
670/620/26 |
20/M24 |
2315 |
1470 |
730 |
246 |
550 |
745/680/30 |
20/M27 |
2448 |
1555 |
805 |
262 |
600 |
780/725/30 |
24/M27 |
2660 |
1715 |
914 |
284 |
650 |
845/780/30 |
24/M27 |
2870 |
1875 |
975 |
289 |
700 |
895/840/30 |
24/M27 |
3045 |
1975 |
1040 |
330 |
750 |
970/900/33 |
24/M27 |
3255 |
2135 |
1100 |
345 |
800 |
1015/950/33 |
24/M30 |
3420 |
1660 |
1160 |
360 |
850 |
1070/1000/33 |
28/M30 |
3630 |
2410 |
1245 |
397 |
900 |
1115/1050/33 |
28/M30 |
3810 |
2540 |
1295 |
424 |
950 |
1170/1120/33 |
28/M30 |
3970 |
2650 |
1396 |
429 |
1000 |
1230/1160/36 |
28/M33 |
4215 |
2825 |
1440 |
470 |
1100 |
1345/1270/39 |
28/M33 |
4598 |
3108 |
1575 |
496 |
1200 |
1455/1380/39 |
32/M36 |
4970 |
3380 |
1675 |
552 |
1300 |
1575/1490/42 |
36/M39 |
5346 |
3656 |
1795 |
582 |
1400 |
1675/1590/42 |
36/M39 |
5703 |
3898 |
1935 |
586 |

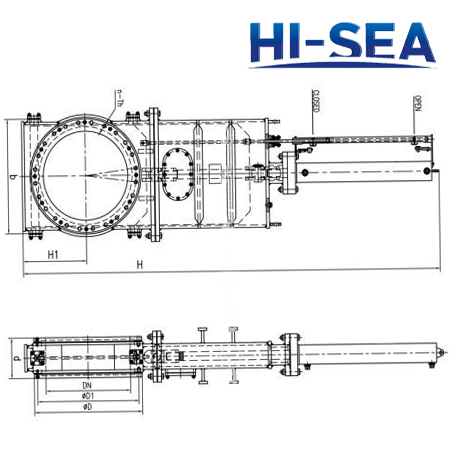

Drawing of Dredge Gate Valve

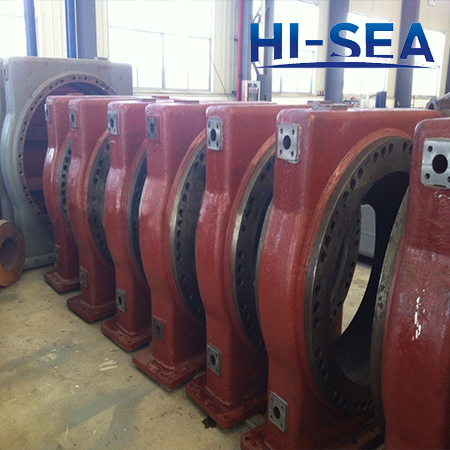

Dredge Gate Valve (1)

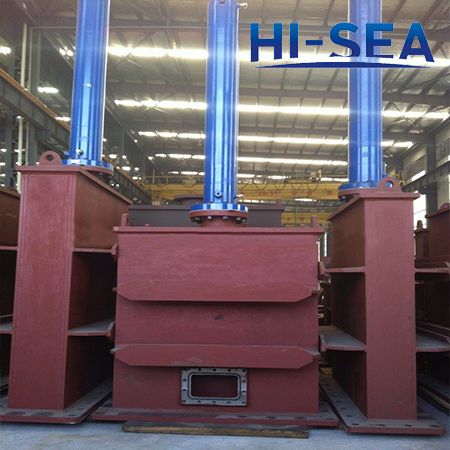

Dredge Gate Valve(2)

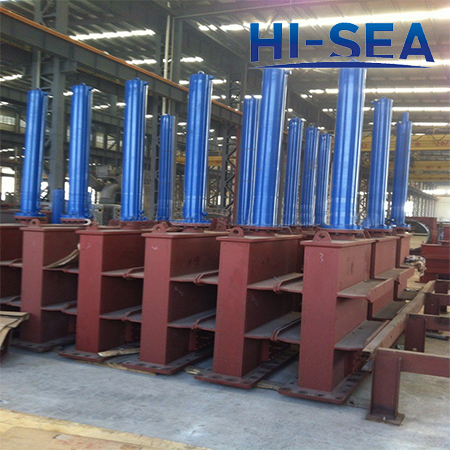

Dredge Gate Valve(3)
