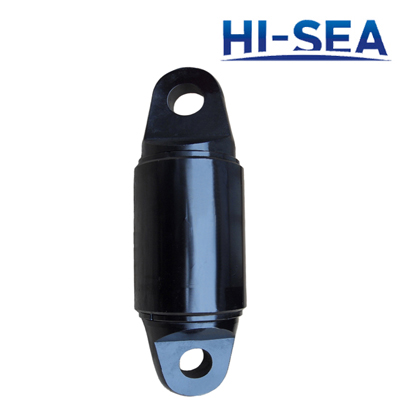

Anti-rotation Wire Rope Socket
Anti-rotation wire rope socket is general used for wire rope in port crane with higher hoisting height. Its main purpose is to release the twist of wire rope in use, and balance weight of wire rope. And the failure rate of it is very low.
Product Details:
1. Model: Anti-rotation wire rope socket
2. Material: Alloy steel
3. Technology: Drop forged
4. Usage: Wire rope fitting
5. SWL: 5T-50T
6. Weight: 27kg-176kg
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Item No. | SWL | Weight | B | B1 | D | D1 | L |
ton | kg | mm | mm | mm | mm | mm | |
HS-01 | 5 | 27 | 40 | 28 | 130 | 43 | 330 |
HS-02 | 10 | 60 | 48 | 32 | 170 | 53 | 450 |
HS-03 | 16 | 80 | 56 | 40 | 190 | 57 | 590 |
HS-04 | 25 | 103 | 64 | 50 | 228 | 61 | 470 |
HS-05 | 40 | 140 | 75 | 60 | 230 | 75 | 480 |
HS-06 | 50 | 176 | 100 | 85 | 260 | 85 | 600 |

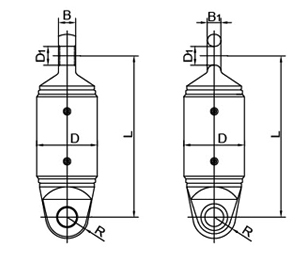

Sketch of anti-rotation wire rope socket
