Electric Galvanized DIN1142 Wire Rope Clip
[Search Related Products]
Electric Galvanized DIN1142 Wire Rope Clip:
This product is used on wire rope eye connections and fastening. It is made of carbon steel or stainless steel and different size is available. And it is galvanized by an electric process. Our company can provide you with high quality products and competitive price. We are looking forward to coorperating with you.
Details:
1. Model NO.: DIN 1142
2. Material: Stainless steel, carbon steel
3. Usage: Wire Rope Clip, fastener
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 5mm to 40mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size |
A |
B |
C |
D |
E |
F |
G |
100/WT |
mm |
kg |
|||||||
5 |
12 |
13 |
13 |
5 |
13 |
25 |
20 |
2.08 |
6.5 |
14 |
16 |
17 |
6 |
14 |
30 |
26 |
4 |
8 |
18 |
20 |
20 |
8 |
18 |
39 |
33 |
8.2 |
10 |
20 |
20 |
24 |
8 |
21 |
40 |
38 |
9.2 |
13 |
17 |
28 |
30 |
12 |
29 |
55 |
52 |
27.5 |
16 |
32 |
32 |
35 |
14 |
35 |
64 |
64 |
43 |
19 |
36 |
32 |
36 |
14 |
40 |
68 |
69 |
49 |
22 |
40 |
34 |
40 |
16 |
44 |
74 |
80 |
68 |
26 |
46 |
38 |
50 |
20 |
51 |
84 |
91 |
117 |
30 |
54 |
41 |
55 |
20 |
59 |
95 |
107 |
140 |
34 |
60 |
45 |
60 |
22 |
67 |
105 |
119 |
213 |
40 |
68 |
49 |
65 |
24 |
77 |
117 |
135 |
268 |

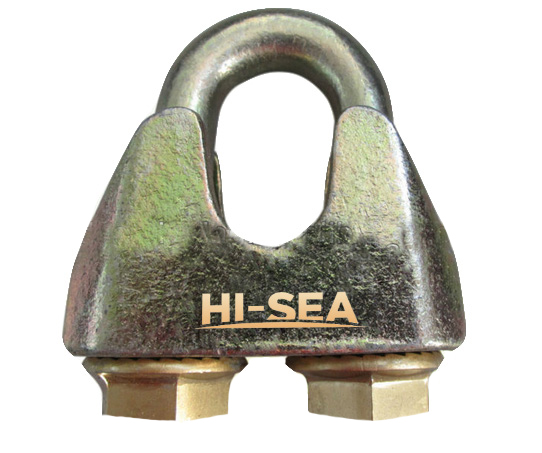

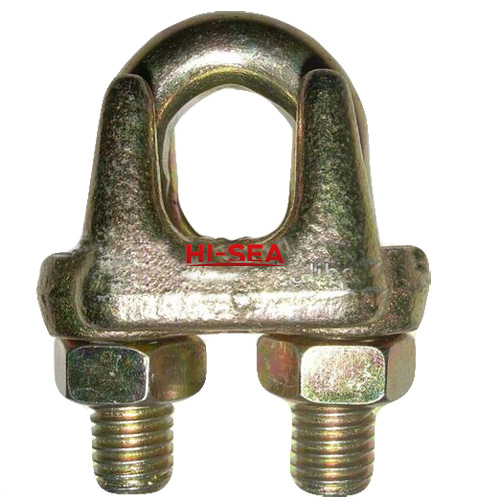

Photo:

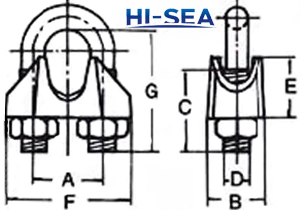

Structure:
