Type B Galvanized Malleable Wire Rope Clip
[Search Related Products]
Type B Galvanized Malleable Wire Rope Clip:
Our company is the earliest professional manufacturer and exporter of marine equipment and offshore equipment in China since 1996. We have our own shareholding factories, also co-operated with other factories with high quality products. We have a professional international sales team to do the export business in the global market. So if you are interested in our products, please feel free to contact with us.
Details:
1. Model: Type B Galvanized Malleable Wire Rope Clip
2. Material: Steel
3. Usage: Wire Rope Clip, marine hardware,etc.
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 1/8 inch to 1 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size(in) |
Dimensions(in) |
Weight Each(kg/pc) |
||||||
A |
B |
C |
D |
E |
F |
G |
||
1/8 |
9.0 |
12.0 |
12 |
4 |
9.5 |
19.0 |
20 |
1.17 |
3/16 |
11.0 |
13.5 |
14 |
5 |
10.8 |
22.0 |
26 |
1.70 |
1/4 |
12.5 |
15.5 |
14 |
5 |
11.5 |
25.0 |
26 |
2.53 |
5/16 |
15.5 |
18.0 |
16 |
6 |
16.0 |
31.0 |
31 |
3.80 |
3/8 |
21.0 |
22.0 |
20 |
8 |
20.0 |
40.0 |
37 |
7.93 |
1/2 |
25.0 |
25.0 |
24 |
10 |
26.0 |
47.0 |
46 |
14.40 |
5/8 |
30.0 |
28.0 |
28 |
12 |
31.0 |
55.0 |
57 |
23.08 |
11/16 |
33.0 |
28.5 |
30 |
12 |
35.0 |
58.5 |
64 |
26.80 |
3/4 |
36.5 |
31.0 |
34 |
16 |
36.0 |
65.0 |
71 |
44.30 |
7/8 |
40.0 |
36.0 |
38 |
16 |
43.0 |
72.0 |
77 |
57.00 |
1 |
45.0 |
40.0 |
44 |
20 |
48.0 |
80.0 |
88 |
88.43 |

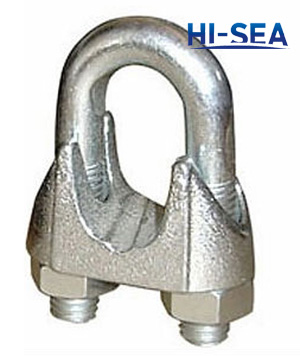

Photo:

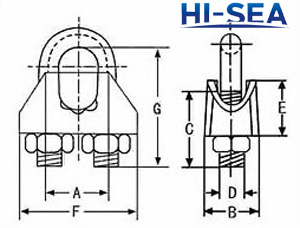

Structure:
