DIN741 Wire Rope Clip:
DIN741 wire rope clip is used on wire rope eye-loop connections or complete loops, end-to-end connections where socketing or splicing is not feasible or when a temporary joint is required. This model wire rope clip is mainly made of carbon steel, stainless steel, malleable iron, etc. Our company offers a wide range of DIN741 wire rope clips and we will try our best to satisfy all your needs. Please feel free to attact with us. We are looking forward to cooperating with you.
Details:
1. Model No.: DIN 741
2. Material: Carbon Steel, Stainless Steel, Malleable Iron
3. Usage: Wire rope clip, marine hardware
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 3mm to 40mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size |
A |
B |
C |
D |
E |
F |
G |
WT/100PCS |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
3 |
21 |
10 |
10 |
4 |
9 |
12 |
16.60 |
1.40 |
5 |
23 |
10 |
11 |
5 |
11 |
13 |
19.65 |
1.50 |
6.5 |
26 |
11 |
12 |
5 |
13 |
15 |
23.65 |
2.10 |
8 |
30 |
15 |
14 |
6 |
16 |
19 |
28.85 |
4.10 |
10 |
34 |
17 |
18 |
8 |
19 |
22 |
35.00 |
6.80 |
11 |
36 |
18 |
19 |
8 |
20 |
22 |
37.00 |
7.20 |
13 |
40 |
21 |
23 |
10 |
24 |
30 |
46.24 |
13.00 |
14 |
44 |
22 |
23 |
10 |
25 |
30 |
48.24 |
13.50 |
16 |
50 |
26 |
26 |
12 |
29 |
33 |
52.50 |
21.00 |
19 |
54 |
30 |
29 |
12 |
32 |
38 |
64.50 |
28.00 |
22 |
61 |
34 |
33 |
14 |
37 |
44 |
72.50 |
40.00 |
26 |
65 |
37 |
35 |
14 |
41 |
45 |
82.50 |
44.00 |
30 |
74 |
43 |
37 |
16 |
48 |
50 |
95.60 |
66.00 |
34 |
80 |
50 |
42 |
16 |
52 |
55 |
105.60 |
85.00 |
40 |
88 |
55 |
45 |
16 |
58 |
60 |
125.60 |
104.00 |

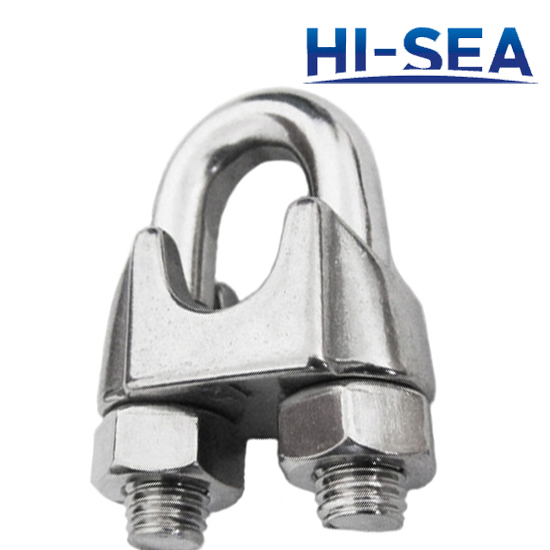

Photo:

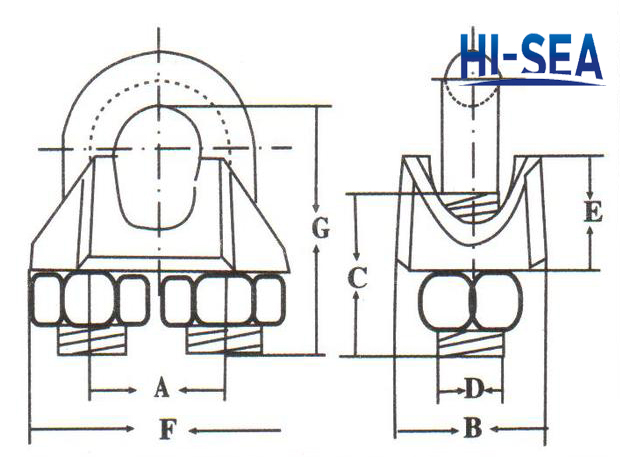

Structure :
