Stainless Steel DIN 741 Wire Rope Clip

Stainless Steel DIN 741 Wire Rope Clip:

Stainless steel DIN 741 wire rope clips are widely used in marine equipment. These products have different sizes for your different needs. In addition, they have high cost performance and have competitive price in the market. Please feel free to get in touch with us if you are interested in.

Details:

1. Model NO.: DIN 741

2. Material: Stainless steel

3. Usage: Wire Rope Clip, marine hardware

4. Surface Treatment: Electro galvanized, Hot dipped galvanized

5. Size: From 3mm to 40mm

6. Packing: Gunny bag or carton and pallet / by customer requirments

7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.

8. Certifications: ISO9001, CE, etc.

9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size	A	B	C	D	E	F	G	WT/100PCS
mm	mm	mm	mm	mm	mm	mm	mm	kg
3	21	10	10	4	9	12	16.60	1.40
5	23	10	11	5	11	13	19.65	1.50
6.5	26	11	12	5	13	15	23.65	2.10
8	30	15	14	6	16	19	28.85	4.10
10	34	17	18	8	19	22	35.00	6.80
11	36	18	19	8	20	22	37.00	7.20
13	40	21	23	10	24	30	46.24	13.00
14	44	22	23	10	25	30	48.24	13.50
16	50	26	26	12	29	33	52.50	21.00
19	54	30	29	12	32	38	64.50	28.00
22	61	34	33	14	37	44	72.50	40.00
26	65	37	35	14	41	45	82.50	44.00
30	74	43	37	16	48	50	95.60	66.00
34	80	50	42	16	52	55	105.60	85.00
40	88	55	45	16	58	60	125.60	104.00

Photo:

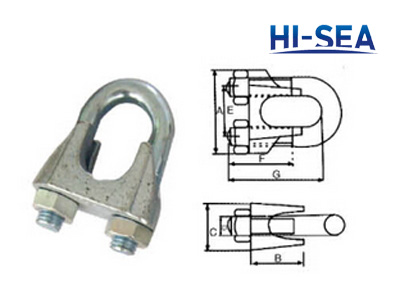

Stainless Steel DIN 741 Wire Rope Clip
