U.S.Type Galv Malleable Wire Rope Clipe:
US type galv malleable wire rope clipe is widely used in marine equipment. It is designed and made for rugged, heavy service. And this product is made up of malleable and zinc plated material. Different sizes will satisfy your different needs. We are looking forward to coorperating with you.
Details:
1. Standard: US type
2. Material: Malleable, zinc plated
3. Usage: Wire rope clip, marine hardware
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 1/8 inch to 1 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size |
A |
B |
C |
D |
E |
F |
G |
100/WT |
inch |
kg |
|||||||
1/8 |
11 |
14 |
14 |
10-24 |
10.8 |
22 |
20 |
1.5 |
3/16 |
13.5 |
15 |
16 |
1/4-20 |
13 |
26 |
24 |
3 |
1/4 |
17 |
18.5 |
20 |
5/16-18 |
15 |
32 |
31.5 |
5.18 |
5/16 |
18.3 |
20 |
22 |
5/16-18 |
16 |
35 |
34 |
5.95 |
3/8 |
22.5 |
22 |
27 |
3/8-16 |
22 |
40.5 |
41.8 |
10.01 |
7/16 |
24 |
23 |
30 |
3/8-16 |
22 |
43 |
42.8 |
11.43 |
1/2 |
27 |
26 |
35 |
7/16-14 |
23.3 |
49 |
53.9 |
17.42 |
9/16 |
30 |
26.5 |
40 |
1/2-13 |
27 |
52.5 |
54.7 |
22.56 |
5/8 |
33 |
28.5 |
40 |
1/2-13 |
28 |
57.5 |
59.2 |
24.84 |
3/4 |
34.5 |
32 |
42 |
9/16-12 |
34 |
61 |
68.7 |
36.53 |
7/8 |
41 |
37 |
46 |
5/8-11 |
38 |
71 |
78 |
53.23 |
1 |
45.5 |
42 |
55 |
5/8-11 |
43 |
77.5 |
87.5 |
68.32 |

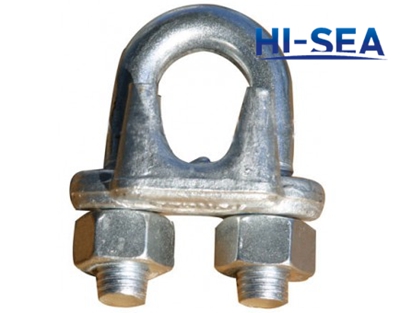

Photo:

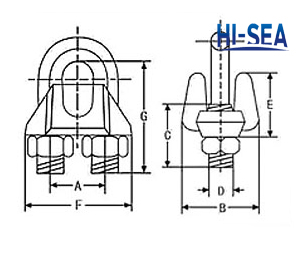

Structure:
