Short Bow Socket
Short bow sockets are casted form high strength steel, which is wear resisitant and impact resistant. Through casting with lead alloy, short bow socket can be well connected with wire rope. It has the best safety performance and economic benefit. And we can provide it with sufficient supply, fast delivery time and complete specification.
Product Details:
1. Model: Short bow socket2. Material: High strength steel
3. Technology: Casting
4. Shape: Pear-shaped
5. Usage: Wire rope fitting
6. Size: 50mm-92mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Code |
Rope Dia. |
Weight |
A |
B |
C |
D |
E |
L |
mm |
kg |
mm |
mm |
mm |
mm |
mm |
mm |
|
HS-01 |
50-54 |
28 |
63.5 |
133.35 |
209.55 |
178.31 |
53.09 |
406.91 |
HS-02 |
57-60 |
37 |
70.61 |
146.05 |
232.66 |
196.09 |
58.67 |
454.66 |
HS-03 |
64-66 |
51 |
77.47 |
170.43 |
257.3 |
216.66 |
68.33 |
505.21 |
HS-04 |
70-73 |
66 |
84.58 |
18101 |
281.69 |
237.24 |
76.2 |
549.4 |
HS-05 |
76-79 |
92 |
88.9 |
196.6 |
312.67 |
261.87 |
82.55 |
596.6 |
HS-06 |
82-85 |
110 |
98.55 |
222.25 |
333.5 |
277.11 |
88.9 |
654.05 |
HS-07 |
89-92 |
134 |
105.41 |
230.12 |
354.58 |
297.69 |
93.73 |
692.15 |

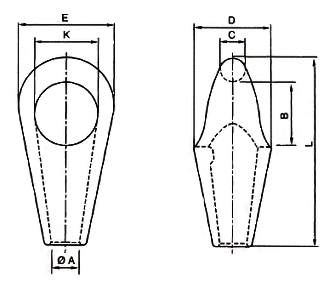

Sketch of short bow socket
