Pear Shaped Wire Rope Socket
[Search Related Products]
Pear Shaped Wire Rope Socket
Pear shaped wire rope socket is drop forged from high quality alloy steel or casted form high strength steel. With special heat treatment, the X-ray nondestructive testing of it is level 1. It can be widely used in offshore oil engineering, lifting tugboat and other extreme environment.
Product Details:
1. Model: Pear shaped wire rope socket
2. Material: Alloy steel/ high strength steel
3. Technology: Casted or drop forged
4. Shape: Pear-shaped
5. Usage: Wire rope fitting
6. Size: 10mm-56mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Code |
Rope Dia. |
A |
B |
E |
F |
H |
I |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
SH-01 |
10-11 |
69 |
48 |
12 |
12 |
24 |
12 |
SH-02 |
12-13 |
79 |
56 |
15 |
14 |
25 |
14 |
SH-03 |
14-15 |
91 |
64 |
17 |
16 |
29 |
16 |
SH-04 |
16-17 |
103 |
70 |
19 |
18 |
31 |
18 |
SH-05 |
18-19 |
114 |
84 |
21 |
19 |
38 |
20 |
SH-06 |
20-21 |
129 |
84 |
23 |
21 |
42 |
22 |
SH-07 |
22-24 |
140 |
100 |
26 |
23 |
44 |
26 |
SH-08 |
25-27 |
158 |
100 |
28 |
25 |
48 |
29 |
SH-09 |
28-30 |
171 |
120 |
31 |
27 |
56 |
31 |
SH-10 |
31-33 |
190 |
120 |
32 |
29 |
58 |
35 |
SH-11 |
34-36 |
203 |
142 |
36 |
31 |
64 |
37 |
SH-12 |
37-39 |
225 |
142 |
39 |
35 |
68 |
40 |
SH-13 |
40-42 |
242 |
166 |
43 |
37 |
70 |
43 |
SH-14 |
43-45 |
265 |
166 |
47 |
41 |
72 |
47 |
SH-15 |
46-48 |
288 |
166 |
49 |
43 |
80 |
51 |
SH-17 |
56 |
340 |
220 |
60 |
54 |
90 |
59 |
Sketch of pear shaped wire rope socket

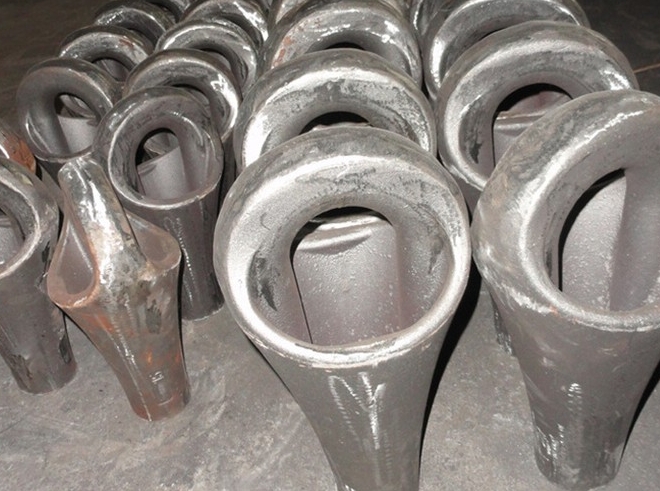

Pear Shaped Wire Rope Socket

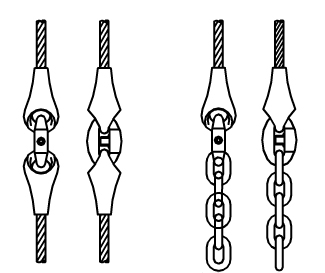

Usage of Pear Shaped Wire Rope Socket
