US Type Wire Rope Open Spelter Socket
Wire Rope spelter socket is used on the terminal of wire rope, which is often be connected with C type shackle and lifting chain. On the basis of wire rope, the effective rate of the connection between wire rope and the spelter socket is 100%. It has the best safety performance and economic benefit.
Product Details:
1. Model: Wire Rope Open Spelter Socket
2. Material: Alloy Steel or Carbon Steel
3. Technology: Drop Forged
4. Surface: Hot Dip Galvanized
5. Usage: Wire Rope Fitting
6. Size: 6mm-102mm
7. Packaging: Gunny Bag or Caron then on Steel Pallet
8. Special Specifications and Marks can be made According to customer¡¯s Requirements.
Specification:
Code | Rope Dia. | MBL | Weight | A | D | G | M | |
mm | in. | ton | kg | mm | mm | mm | mm | |
SH-01 |
6-7 |
1/4 | 4.5 | 0.5 | 115.8 | 18 | 17.5 | 33.3 |
SH-02 | 8-10 | 5/16-3/8 | 12 | 0.59 | 122.9 | 20 | 20.6 | 38.1 |
SH-03 | 11-13 | 7/16-1/2 | 20 | 1.02 | 141.2 | 26 | 23.9 | 47.8 |
SH-04 | 14-16 | 9/16-5/8 | 27 | 1.63 | 171.5 | 30 | 28.7 | 57.2 |
SH-05 | 18 | 3/4 | 43 | 2.64 | 201.7 | 35 | 31.8 | 66.6 |
SH-06 | 20-22 | 7/8 | 55 | 4.38 | 235 | 41 | 38.1 | 79.5 |
SH-07 | 24-26 | 1 | 78 | 7.03 | 268.2 | 51 | 44.5 | 95.3 |
SH-08 | 28-30 | 1-1/8 | 92 | 9.75 | 300 | 57 | 50.8 | 104.7 |
SH-09 | 32-35 | 1-3/8 | 136 | 14.1 | 335 | 64 | 57.2 | 120.7 |
SH-10 | 38 | 1-1/2 | 170 | 21.4 | 384 | 70 | 69.9 | 136.7 |
SH-11 | 40-42 | 1-1/5 | 188 | 24.9 | 412.8 | 76 | 76.2 | 146.1 |
SH-12 | 44-48 | 1-7/8 | 268 | 37.2 | 463.6 | 89 | 79.5 | 165.1 |
SH-13 | 50-54 | 2-1/8 | 291 | 59 | 546.1 | 95 | 95.3 | 177.8 |
SH-14 | 56-60 | 2-1/4 | 360 | 76 | 596.9 | 108 | 101.6 | 196.9 |
SH-15 | 64-67 | 2-5/8 | 424 | 114 | 647.7 | 120 | 114.3 | 215.9 |
SH-16 | 70-73 | 2-3/4 | 511 | 143 | 692.2 | 127 | 124 | 228.6 |
SH-17 | 75-80 | 3-1/8 | 563 | 172 | 736.6 | 133 | 133.6 | 241.3 |
SH-18 | 82-86 | 3-1/4 | 722 | 197 | 784.4 | 140 | 146.1 | 254 |
SH-19 | 88-92 | 3-1/2 | 779 | 255 | 844.6 | 152 | 165.1 | 273.1 |
SH-20 | 94-102 | 3-3/4-4 | 875 | 355 | 920.8 | 178 | 184.2 | 317.5 |

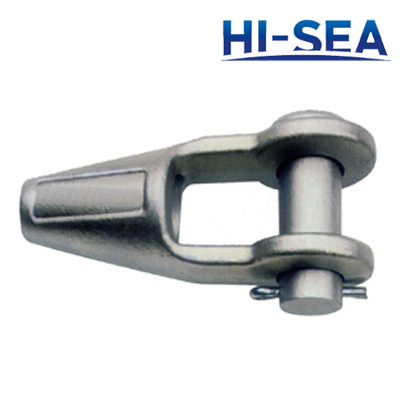

Sketch of wire rope open spelter socket
