DIN1142 Carbon Steel Wire Rope Clip:
Wire rope clip, sometimes also called u-bolt clamp or u-bolt clip. It is used on wire rope eye connections when socketing or mechanical splicing is not feasible or when a temporary joint is required. This product is made of carbon steel and different size is available. In addition, we have our own factories and also cooperate with other excellent factories. You can get the most competitive price from us.Our professional sales team can also provide you the best service.Welcome to contact with us on any product you are interested in.
Details:
1. Model NO.: DIN 1142
2. Material: Carbon Steel
3. Usage: Lifting and connecting, Wire rope fittings, Chain fittings, Marine hadware fittings,etc
4. Surface Treatment: Electro galvanized, Hot dipped galvanized
5. Size: From 5mm to 40mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: qualty assurance, experienced staff, professional service, copetitive price, etc.
8. Certifications: ISO9001, CE
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Size(mm) |
Demension(mm) |
Weight |
||||||
A |
B |
C |
D |
E |
F |
G |
100/WT(kg) |
|
5 |
12 |
13 |
13 |
5 |
13 |
25 |
20 |
2.08 |
6.5 |
14 |
16 |
17 |
6 |
14 |
30 |
26 |
4 |
8 |
18 |
20 |
20 |
8 |
18 |
39 |
33 |
8.2 |
10 |
20 |
20 |
24 |
8 |
21 |
40 |
38 |
9.2 |
13 |
17 |
28 |
30 |
12 |
29 |
55 |
52 |
27.5 |
16 |
32 |
32 |
35 |
14 |
35 |
64 |
64 |
43 |
19 |
36 |
32 |
36 |
14 |
40 |
68 |
69 |
49 |
22 |
40 |
34 |
40 |
16 |
44 |
74 |
80 |
68 |
26 |
46 |
38 |
50 |
20 |
51 |
84 |
91 |
117 |
30 |
54 |
41 |
55 |
20 |
59 |
98 |
107 |
140 |
34 |
60 |
45 |
60 |
22 |
67 |
105 |
119 |
213 |
40 |
68 |
49 |
65 |
24 |
77 |
117 |
135 |
268 |

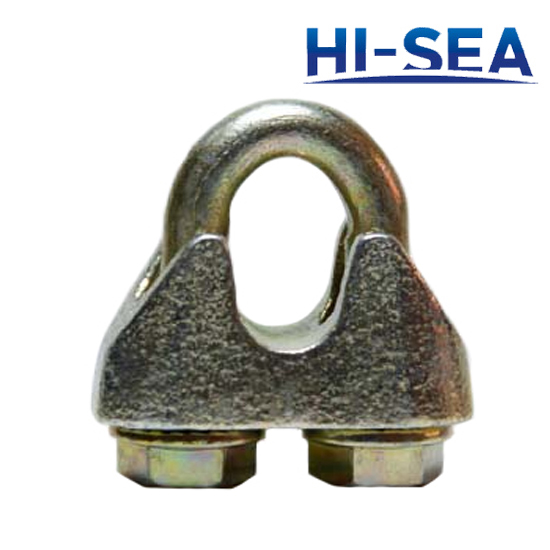

Photo:
Structure:
