G416 Open Spelter Socket
We have produced spelter socket for more than 10 years. And we can provide it with sufficient supply, fast delivery time and complete specification. It is used on the terminal of wire rope, which is often be connected with C type shackle and lifting chain. On the basis of wire rope, the effective rate of the connection between wire rope and the spelter socket is 100%.
Product Details:
1. Model: G416 wire rope open spelter socket
2. Material: Alloy steel
3. Technology: Drop forged
4. Surface: Hot dip galvanized
5. Usage: Wire rope fitting
6. Size: 10.5mm-63mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
SWL | Rope Dia. | Weight | L | B | A | D | D1 |
ton | mm | kg | mm | mm | mm | mm | mm |
1.2 | 10.5 | 0.8 | 144 | 29 | 45 | 14 | 20 |
1.7 | 12 | 1 | 159 | 31 | 49 | 16 | 22 |
2.2 | 14 | 1.2 | 176 | 31 | 53 | 18 | 24 |
2.6 | 16 | 1.5 | 193 | 32 | 58 | 20 | 26 |
3.3 | 18 | 2.2 | 210 | 35 | 65 | 23 | 29 |
4.1 | 20 | 3 | 227 | 37 | 73 | 25 | 32 |
5.1 | 23 | 4 | 245 | 40 | 80 | 30 | 35 |
5.9 | 24 | 5.3 | 262 | 44 | 88 | 32 | 38 |
6.9 | 25 | 7 | 281 | 48 | 96 | 33 | 41 |
8 | 28 | 8.5 | 298 | 51 | 103 | 36 | 44 |
9.2 | 30 | 10.5 | 316 | 54 | 110 | 38 | 47 |
10.5 | 31.5 | 13 | 335 | 56 | 118 | 40 | 50 |
11.5 | 33.5 | 15.5 | 353 | 59 | 125 | 42 | 54 |
13 | 36 | 18 | 373 | 62 | 132 | 44 | 57 |
14.5 | 37.5 | 22 | 392 | 66 | 138 | 47 | 60 |
16.5 | 40 | 25 | 413 | 70 | 146 | 49 | 63 |
18.5 | 42 | 29 | 434 | 72 | 152 | 52 | 66 |
21 | 45 | 39 | 474 | 79 | 167 | 54 | 72 |
23 | 47.5 | 43 | 494 | 82 | 174 | 57 | 75 |
25.5 | 50 | 48 | 516 | 85 | 181 | 60 | 78 |
28 | 53 | 54 | 536 | 89 | 189 | 63 | 81 |
31.5 | 56 | 65 | 567 | 93 | 199 | 66 | 85 |
36 | 60 | 81 | 619 | 101 | 215 | 70 | 92 |
40 | 63 | 88 | 641 | 105 | 221 | 74 | 95 |

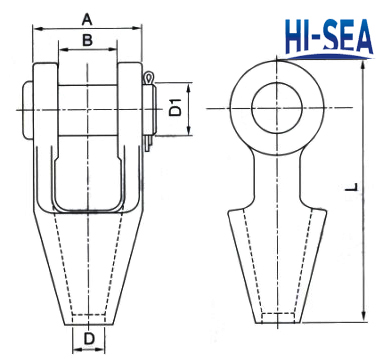

Sketch of G416 Open Spelter Socket
G416 Open Spelter Socket
