Wire Rope Wedge Socket
[Search Related Products]
Wire Rope Wedge Socket:

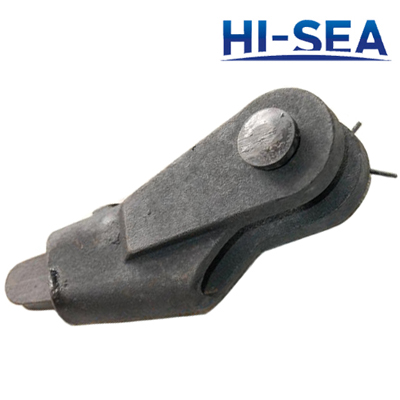

Wire rope wedge socket is a kind of compenent, which is applicable to various cranes, grabs and large equipments. It is used for fixing, fastening and connecting of wire rope, and has advantages of simple structure, easy to use, safe and reliable, etc. It is made from forged alloy steel that makes the strength of it have improved greatly.
Product Details:
1. Model: Wire Rope Wedge Socket
2. Material: Carbon Steel
3. Technology: Casting
4. Surface: Galvanized, Painted
5. Usage: Wire Rope Fitting
6. Size: M06-M65
7. Packaging: Gunny Bag or Caron then on Steel Pallet
8. Special Specifications and Marks can be made According to customer¡¯s Requirements.
Specification:
Product Code | Diameter of Wire Rope | B | C | D | R | H |
mm | mm | mm | mm | mm | mm | |
M06 | 6 | 13 | 25 | 16 | 20 | 90 |
M08 | 8 | 15 | 27 | 18 | 22 | 100 |
M10 | 10 | 18 | 30 | 20 | 24 | 120 |
M12 | 12 | 20 | 36 | 25 | 30 | 155 |
M14 | 14 | 23 | 41 | 30 | 36 | 185 |
M16 | 16 | 26 | 48 | 34 | 40 | 195 |
M18 | 18 | 28 | 52 | 36 | 44 | 195 |
M20 | 20 | 30 | 58 | 38 | 45 | 220 |
M22 | 22 | 32 | 64 | 40 | 48 | 240 |
M24 | 24 | 35 | 71 | 50 | 60 | 260 |
M26 | 26 | 38 | 76 | 55 | 66 | 280 |
M28 | 28 | 40 | 78 | 60 | 72 | 305 |
M32 | 32 | 44 | 84 | 65 | 78 | 360 |
M36 | 36 | 48 | 96 | 70 | 84 | 390 |
M40 | 40 | 55 | 103 | 75 | 90 | 470 |
M45 | 45 | 60 | 118 | 80 | 98 | 540 |
M50 | 50 | 65 | 130 | 85 | 102 | 600 |
M55 | 55 | 70 | 146 | 90 | 108 | 680 |
M65 | 65 | 75 | 170 | 100 | 120 | 780 |

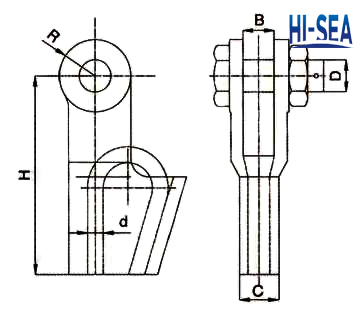

Sketch of Wire Rope Wedge Socket
Wire Rope Wedge Socket-A
Wire Rope Wedge Socket-B

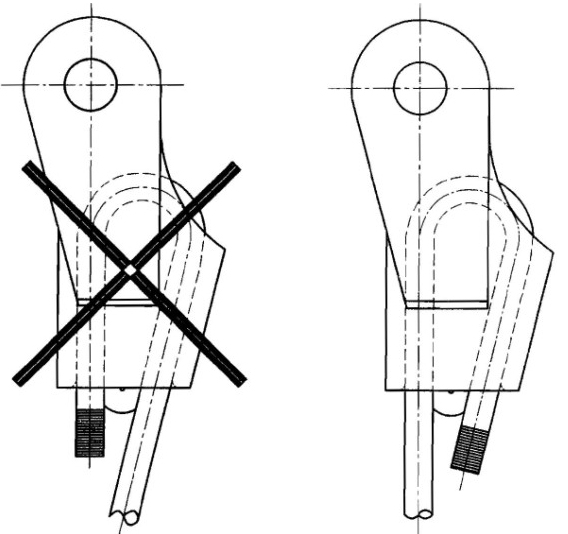

Correct Use Method of Wedge Socket
