G411 Standard Wire Rope Thimble
[Search Related Products]
G411 Standard Wire Rope Thimble:
G411 standard wire rope thimbles are one of our company's key products. They have high cost performance. Our professional sales team will provide you with the best service. Please feel free to get in touch with us.
Details:
1. Model: G411 Standard Wire Rope Thimble
2. Material: Carbon steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Hot dip galvanized, electro galvanized
5. Size: From 1/8 inch to 11/4 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:
Seil-ø |
A |
L |
C |
inch |
mm |
mm |
mm |
1/8 |
4 |
33.27 |
17.5 |
3/16 |
5 |
33.27 |
17.5 |
1/4 |
7 |
33.27 |
17.5 |
5/16 |
8.6 |
38 |
20.57 |
3/8 |
10.4 |
41 |
23.88 |
1/2 |
13.5 |
47.75 |
28.7 |
5/8 |
16.8 |
57.15 |
35.05 |
3/4 |
19.8 |
63.5 |
41.4 |
7/8 |
23.88 |
88.9 |
47.75 |
1 |
26.92 |
107.95 |
63.5 |
11/8-11/4 |
33.27 |
114.3 |
69.85 |
Photo:

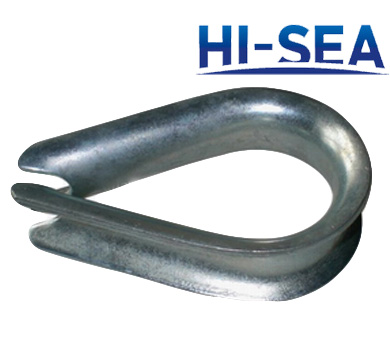

Carbon Steel G411 Standard Wire Rope Thimble

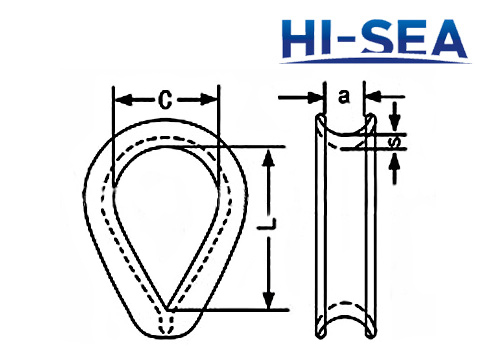

Structure:
