DIN 741 Malleable Iron Wire Rope Clip

DIN 741 Malleable Iron Wire Rope Clip:

Malleable iron wire rope clip is a light duty wire rope clip and is not for anything overhead. It is a softer wire rope clip, thus a lighter duty option. It can be used for fences and other applications that do not sustain overhead. The size of this product is from 3mm to 40mm and we have required ISO9001 and CE certifications. Please feel free to contact with us on DIN 741 malleable iron wire rope clip.

Details:

1. Model NO.: DIN 741

2. Material: Malleable Iron

3. Usage: Lifting, rigging, marine hadware, etc.

4. Surface Treatment: Electro galvanized, Hot dipped galvanized

5. Size: From 3mm to 40mm

6. Packing: Gunny bag or carton and pallet / by customer requirments

7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.

8. Certifications: ISO9001, CE

9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size		A	B	C	D	E	F	G	100/WT(kg)
mm	in	A	B	C	D	E	F	G	100/WT(kg)
3	1/8	9	10	12	4	10	21	16	1.4
5	3/16	11	11	13	5	10	23	19	1.5
6.5	1/4	13	12	15	5	11	26	23	2.1
8	5/16	16	14	19	6	15	30	28	4.1
10	3/8	19	18	22	8	17	34	34	6.8
11	7/16	20	19	22	8	18	36	36	7.2
13	1/2	24	23	30	10	21	42	45	13
14	9/16	25	23	30	10	22	44	47	13.5
16	5/8	29	26	33	12	26	50	51	21
19	3/4	32	29	38	12	30	54	63	28
22	7/8	37	33	44	14	34	61	71	40
26	1	41	35	45	14	37	65	81	44
30	11/8	48	37	50	16	43	74	94	66
34	11/4	52	42	55	16	50	80	104	85
40	11/2	58	45	60	16	55	88	124	104

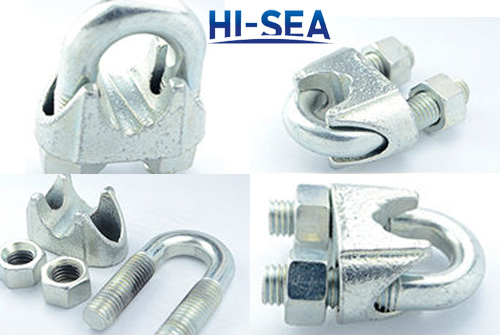

Photo:

DIN 741 Malleable Iron Wire Rope Clip

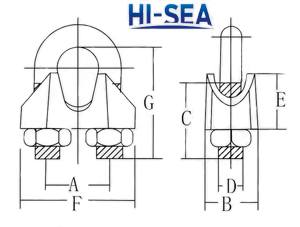

Structure:

DIN 741 Malleable Iron Wire Rope Clip
