Stainless Steel G411 Wire Rope Thimble

Stainless Steel G411 Wire Rope Thimble:

Our company is a professional wire rope thimble manufacturer, supplier and exporter in China. Various size is available. We are looking forward to being your business partner.

Details:

1. Model: G411 Wire Rope Thimble
2. Material: Stainless steel
3. Usage: Wire rope fittings, chain fittings, marine hardware fittings
4. Surface Treatment: Galvanized, hot dipped galvanized
5. Size: Different sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Rope dia

Dimensions(in)

Weight 100PCS(LBS)

in

A

B

C

D

E

F

G

H

1/8

1.94

1.31

1.06

0.69

0.25

0.16

0.05

0.13

2.50

3/16

1.94

1.31

1.06

0.69

0.31

0.22

0.05

0.13

2.50

1/4

1.94

1.31

1.06

0.69

0.38

0.28

0.05

0.13

3.75

5/16

2.13

1.50

1.25

0.81

0.44

0.34

0.05

0.13

3.75

3/8

2.38

1.63

1.47

0.94

0.53

0.41

0.06

0.16

6.25

1/2

2.75

1.88

1.75

1.13

0.69

0.53

0.08

0.19

12.50

5/8

3.50

2.50

2.38

1.38

0.91

0.66

0.13

0.34

25.00

3/4

3.75

2.50

2.69

1.63

1.08

0.78

0.14

0.34

50.00

7/8

5.00

3.50

3.19

1.88

1.27

0.94

0.16

0.44

85.00

1

5.69

4.25

3.75

2.50

1.39

1.06

0.16

0.41

100.00

1-1/8-1-1/4

6.25

4.25

4.31

2.75

1.75

1.31

0.22

0.50

175.00

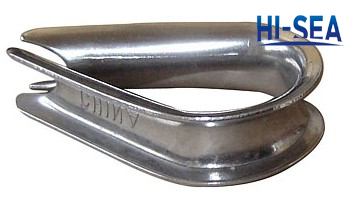

Photo:

Structure:

Wire Rope Fittings

Stainless Steel G411 Wire Rope Thimble

Contact with us now

Rope dia	Dimensions(in)								Weight 100PCS(LBS)
in	A	B	C	D	E	F	G	H	Weight 100PCS(LBS)
1/8	1.94	1.31	1.06	0.69	0.25	0.16	0.05	0.13	2.50
3/16	1.94	1.31	1.06	0.69	0.31	0.22	0.05	0.13	2.50
1/4	1.94	1.31	1.06	0.69	0.38	0.28	0.05	0.13	3.75
5/16	2.13	1.50	1.25	0.81	0.44	0.34	0.05	0.13	3.75
3/8	2.38	1.63	1.47	0.94	0.53	0.41	0.06	0.16	6.25
1/2	2.75	1.88	1.75	1.13	0.69	0.53	0.08	0.19	12.50
5/8	3.50	2.50	2.38	1.38	0.91	0.66	0.13	0.34	25.00
3/4	3.75	2.50	2.69	1.63	1.08	0.78	0.14	0.34	50.00
7/8	5.00	3.50	3.19	1.88	1.27	0.94	0.16	0.44	85.00
1	5.69	4.25	3.75	2.50	1.39	1.06	0.16	0.41	100.00
1-1/8-1-1/4	6.25	4.25	4.31	2.75	1.75	1.31	0.22	0.50	175.00
