Wire Rope Aluminium Stop Button
[Search Related Products]Wire Rope Aluminium Stop Button
Aluminium stop button is made of seamless aluminium sleeve by the unique techniques of us with special processing for the inside of aluminium alloy sleeve. And it can greatly improve the quality of pressed wire rope products.
Product Details:
1. Model: Wire rope aluminium stop button
2. Material: Aluminium alloy
3. Technology: Casting
4. Shape: Round shape
5. Usage: Wire rope fitting
6. Size: M1-M10
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Code |
Thinkness |
Weight |
A |
D |
L |
mm |
kgs/1000pcs |
mm |
mm |
mm |
|
M1 |
0.9 |
0.04 |
1.2 |
3 |
3.2 |
M1.2 |
0.95 |
0.08 |
1.4 |
3.3 |
5 |
M1.5 |
0.75 |
0.1 |
1.8 |
4 |
8 |
M2 |
1.1 |
0.16 |
2.3 |
5 |
5 |
M2.5 |
1.4 |
0.29 |
2.7 |
5.5 |
5.5 |
M3 |
1.3 |
0.3 |
3.4 |
6 |
6 |
M4 |
1.5 |
0.62 |
4.5 |
7.5 |
8 |
M5 |
1.5 |
0.78 |
5.5 |
8.5 |
9 |
M6 |
2 |
1.47 |
6.8 |
10.8 |
10 |
M8 |
2 |
2.02 |
8.8 |
12.8 |
11 |

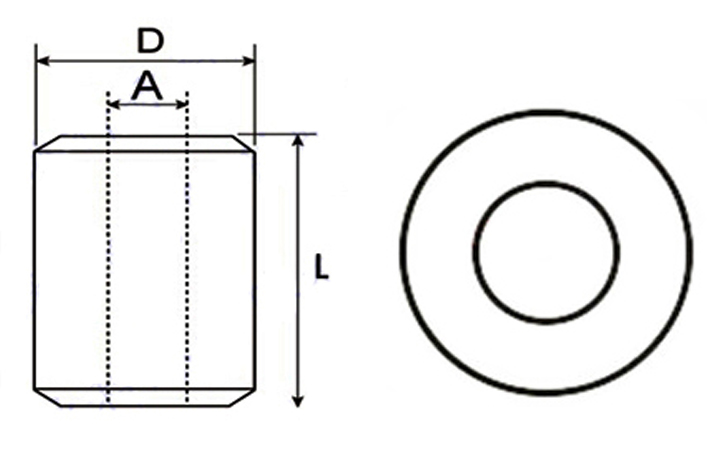

Sketch of Aluminium Stop Button
Wire Rope Aluminium Stop Button
