US Type Hourglass Aluminium Ferrule
US type hourglass aluminium wire rope ferrule are produced from 1.19mm-15.88mm. Using such aluminium sleeve manufactured through unique processing can improve the quality of pressed wire rope products, even higher than the national standard.
Product Details:
1. Model:US type hourglass aluminium wire rope ferrule
2. Material: Aluminiuml
3. Technology: Casting
4. Shape: 8 shape
5. Usage: Wire rope fitting
6. Specificaion: 1.19mm-15.88mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Size |
Weight |
A |
B |
C |
D |
L |
mm |
kgs/1000pcs |
mm |
mm |
mm |
mm |
mm |
1.19 |
0.276 |
1.59 |
3.18 |
3.6 |
5.2 |
9.5 |
1.58 |
0.433 |
1.98 |
3.97 |
4.4 |
6.4 |
9.5 |
1.98 |
0.645 |
2.38 |
4.76 |
5.2 |
7.9 |
9.5 |
2.38 |
1.45 |
3.18 |
6.35 |
7.1 |
10.3 |
12.7 |
3.18 |
2.7 |
3.97 |
7.94 |
8.7 |
12.7 |
16 |
3.97 |
3.67 |
4.76 |
9.53 |
9.53 |
14.3 |
17 |
4.76 |
7.18 |
5.56 |
11.11 |
11 |
16.7 |
25 |
5.56 |
10 |
6.35 |
12.7 |
12.7 |
19 |
26 |
6.35 |
11.76 |
7.14 |
14.29 |
13.5 |
20.6 |
28 |
7.14 |
13.62 |
7.94 |
15.88 |
14.3 |
22.2 |
30 |
7.94 |
20.94 |
9.53 |
19.05 |
17.5 |
26.2 |
32 |
9.53 |
28.18 |
11.11 |
22.23 |
19.1 |
29.4 |
36 |
11.11 |
52 |
12.7 |
25.4 |
23.8 |
36.5 |
42 |
12.7 |
80.15 |
14.29 |
28.58 |
27 |
41.3 |
50 |
14.29 |
99.88 |
15.88 |
31.75 |
28.6 |
44.5 |
54 |
15.88 |
139.78 |
17.46 |
34.93 |
31.8 |
49.2 |
64 |

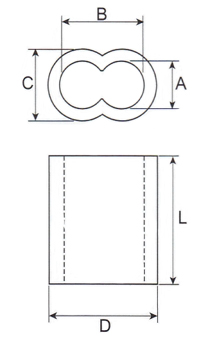

Sketch of US Type Hourglalss ALuminium Ferrule

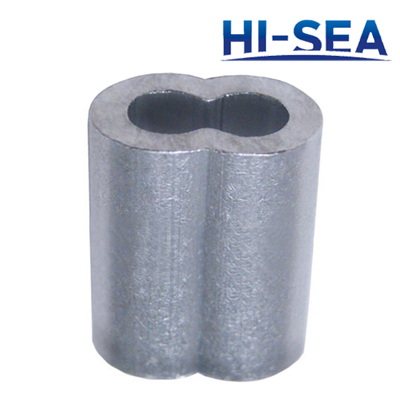

US Type Hourglalss ALuminium Ferrule

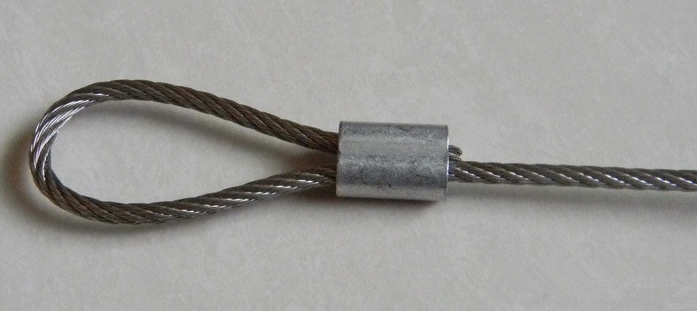

Usage of US Type Hourglass Aluminium Ferrule
