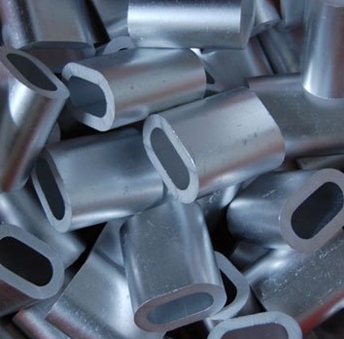

DIN3039 Aluminium Wire Rope Ferrule
DIN3039 aluminium wire rope ferrule are manufactured according to EN13411-3 from 2.5mm to 60mm. For safety in fabrication and application, our ferrules are made of strictly seamless material corresponding to the requirements of DIN3039. It can improve the quality of pressed wire rope products. And it is widely used in wire rope field according to it cheap price and high cost performance.
Product Details:
1. Model: Din3039 aluminium wire rope ferrule
2. Material: Aluminiuml
3. Technology: Casting
4. Shape: Oval
5. Usage: Wire rope fitting
6. Specificaion: 1-60
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Ferrule Code |
Weight |
A |
B |
S |
L |
kg/1000pcs |
mm |
mm |
mm |
mm |
|
1 |
0.094 |
1.2 |
2.4 |
0.65 |
5 |
1.5 |
0.211 |
1.7 |
3.4 |
0.75 |
6 |
2 |
0.375 |
2.2 |
4.4 |
0.85 |
7 |
2.5 |
0.499 |
2.7 |
5.4 |
1.05 |
9 |
3 |
0.843 |
3.3 |
6.6 |
1.25 |
11 |
3.5 |
1.32 |
3.8 |
7.6 |
1.5 |
13 |
4 |
1.81 |
4.4 |
8.8 |
1.7 |
14 |
4.5 |
2.61 |
4.9 |
9.8 |
1.9 |
16 |
5 |
3.57 |
5.5 |
11 |
2.1 |
18 |
6 |
5.86 |
6.6 |
13.2 |
2.5 |
21 |
6.5 |
7.55 |
7.2 |
14.4 |
2.7 |
23 |
7 |
9.5 |
7.8 |
15.6 |
2.9 |
25 |
8 |
13.7 |
8.8 |
17.6 |
3.3 |
28 |
9 |
19.8 |
9.9 |
19.8 |
3.7 |
32 |
10 |
26.4 |
10.9 |
21.8 |
4.1 |
35 |
11 |
35.8 |
12.1 |
24.2 |
4.5 |
39 |
12 |
45.8 |
13.2 |
26.4 |
4.9 |
42 |
13 |
59.7 |
14.2 |
28.4 |
5.4 |
46 |
14 |
73.5 |
15.333 |
30.6 |
5.8 |
49 |
16 |
111 |
17.5 |
35 |
6.7 |
56 |
18 |
156 |
19.6 |
39.2 |
7.6 |
63 |
20 |
217 |
21.7 |
43.4 |
8.4 |
70 |
22 |
292 |
24.3 |
48.6 |
9.2 |
77 |
24 |
376 |
26.4 |
52.8 |
10 |
84 |
26 |
481 |
28.5 |
57 |
10.9 |
91 |
28 |
603 |
31 |
62 |
11.7 |
98 |
30 |
739 |
33.1 |
66.2 |
12.5 |
105 |
32 |
897 |
35.2 |
70.4 |
13.4 |
112 |
34 |
1077 |
37.6 |
75.6 |
14.2 |
119 |
36 |
1275 |
39.8 |
79.6 |
15 |
126 |
38 |
1503 |
41.9 |
83.8 |
15.8 |
133 |
40 |
1734 |
44 |
88 |
16.6 |
140 |
42 |
2024 |
46.2 |
92.4 |
17.5 |
147 |
44 |
2314 |
48.4 |
96.8 |
18.3 |
154 |
46 |
2662 |
50.6 |
101.2 |
19.2 |
161 |
48 |
3010 |
52.8 |
105.6 |
20 |
168 |
50 |
3412 |
55 |
110 |
20.8 |
175 |
52 |
3813 |
57.2 |
114.4 |
21.6 |
182 |
54 |
4293 |
59.4 |
118.8 |
22.5 |
189 |
56 |
4772 |
61.6 |
123.2 |
23.3 |
196 |
58 |
5326 |
63.8 |
127.6 |
24.2 |
203 |
60 |
5880 |
66 |
132 |
25 |
210 |

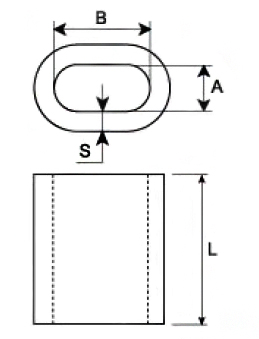

Sketch of DIN3039 Aluminium Wire Rope Ferrule
Usage of DIN3039 Aluminium Wire Rope Ferrule
DIN3039 Aluminum Wire Rope Ferrule
