Stainless Steel JIS Type Wire Rope Clip

Stainless Steel JIS Type Wire Rope Clip:

This product is made of stainless steel and different size is availble. What's more, it also has high quality and competitive price. If you are interested in our product, welcome to get in touch with us.

Details:

1. Standard: JIS Type

2. Material: Stainless Steel

3. Usage: Wire Rope Clip, marine hardware,etc.

4. Surface Treatment: Electro galvanized, Hot dipped galvanized

5. Size: From 6mm to 25mm

6. Packing: Gunny bag or carton and pallet / by customer requirments

7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.

8. Certifications: ISO9001, CE

9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Nominal Size (mm)	B(mm)	C(mm)	E(mm)	G12(mm)	Thread Dia(mm)	H(mm)	L(mm)	S(mm)	W/PCE(kg)
6	6	29	24	14	M6	5	35	20	0.047
8	6	36	31	18	8	6.5	40	20	0.08
10	7	45	35	22	10	8	50	28	0.15
12	8	51	39	26	13	10	60	35	0.25
14	9	53	45	28	12	10	65	40	0.29
16	10	60	48	32	14	11	75	45	0.35
18	11	62	0.53	34	14	11	80	50	0.45
20-22	12	78	62	44	18	15	100	60	0.96
24-25	13	86	68	48	20	16	110	65	1.25

Photo:

Stainless Steel JIS Type Wire Rope Clip

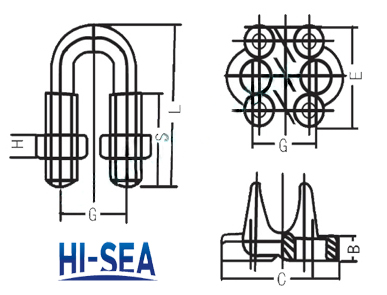

Structure:

Stainless Steel JIS Type Wire Rope Clip
