European Type Drop Forged Wire Rope Clip

European Type Drop Forged Wire Rope Clip:

Drop forged wire rope clips are heavy duty wire rope clips that can be used for sustaining overhead loads. Drop forged clips are galvanized, meaning they have a heavy coating of a zinc solution that will hold up to work site abuse and the elements for a long time. The different sizes of Euopean type drop forged wire rope clips can satisfy your different needs. We can provide you with high quality products and service. Please feel free to contact with us.

Details:

1. Standard: European Type

2. Material: Stainless Steel, Alloy Steel

3. Usage: Wire Rope Clip, marine hardware,etc.

4. Surface Treatment: Electro galvanized, Hot dipped galvanized

5. Size: From 4mm to 24mm

6. Packing: Gunny bag or carton and pallet / by customer requirments

7. Our advantages: qualty assurance, experienced staff, professional service, competitive price, etc.

8. Certifications: ISO9001, CE

9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size	N.W.
mm	kg/100PCS
4	1.00
5	2.00
6	3.00
8	4.00
10	7.00
12	12.00
14	14.00
16	18.00
18	26.00
20	29.00
22	30.00
24	38.00

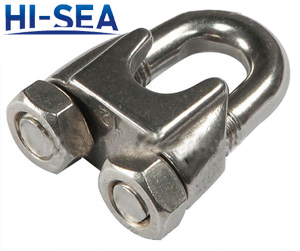

Photo:

European Type Drop Forged Wire Rope Clip

Structure:

Sketch of the European type wire rope clip
