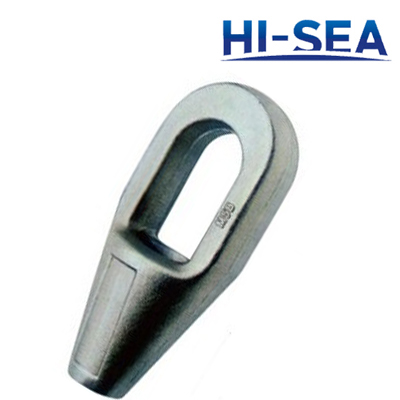

US Type Wire Rope Close Spelter Socket
US type wire rope close spelter socket is drop forged from high qualtity alloy steel with tempering heat treatment process. It can be widely used in offshore oil engineering, lifting tugboat and other extreme environment. We can provide it with sufficient supply, fast delivery time and complete specification.Product Details:
1. Model: US type wire rope close spelter socket2. Material: Alloy steel
3. Technology: Drop forged
4. Surface: Hot dip galvanized
5. Usage: Wire rope fitting
6. Size: 6mm-102mm
7. Packaging: Gunny bag or carton then on steel pallet
8. Special specification and marks can be made according to order quantity
Specification:
Code |
Rope Dia. |
MBL |
Weight |
A |
D |
G |
K |
|
mm |
in. |
ton |
kg |
mm |
mm |
mm |
mm |
|
SHC-01 |
6-7 |
1/4 |
4.5 |
0.23 |
114.3 |
22.4 |
17.5 |
12.7 |
SHC-02 |
8-10 |
5/16-3/8 |
12 |
0.34 |
125.2 |
24.6 |
20.6 |
17.5 |
SHC-03 |
11-13 |
7/16-1/2 |
20 |
0.68 |
139.7 |
29.6 |
23.9 |
22.4 |
SHC-04 |
14-16 |
9/16-5/8 |
30.8 |
1.13 |
160.3 |
35.8 |
28.7 |
25.4 |
SHC-05 |
18 |
3/4 |
43.5 |
1.92 |
193.6 |
42.2 |
31.8 |
31.8 |
SHC-06 |
20-22 |
7/8 |
65.3 |
3.28 |
2223 |
49.3 |
38.1 |
38.1 |
SHC-07 |
24-26 |
1 |
81.6 |
4.76 |
251 |
58.4 |
44.5 |
44.5 |
SHC-08 |
28-30 |
1-1/8 |
100 |
6.46 |
279.4 |
65 |
50.8 |
50.8 |
SHC-09 |
32-35 |
1-3/8 |
136 |
8.95 |
308.1 |
71.4 |
57.2 |
57.2 |
SHC-10 |
38 |
1-1/2 |
170 |
13.2 |
354.1 |
81 |
69.9 |
63.5 |
SHC-11 |
40-42 |
1-1/5 |
188 |
16.3 |
384.3 |
82.6 |
76.2 |
69.9 |
SHC-12 |
44-48 |
1-7/8 |
268 |
26 |
438.2 |
95.3 |
79.5 |
76.2 |
SHC-13 |
50-54 |
2-1/8 |
309 |
35.8 |
501.7 |
111.3 |
95.3 |
82.6 |
SHC-14 |
56-60 |
2-1/4 |
360 |
47.6 |
546.1 |
127 |
101.6 |
92.2 |
SHC-15 |
64-67 |
2-5/8 |
424 |
63.5 |
596.7 |
139.7 |
114.3 |
101.6 |
SHC-16 |
70-73 |
2-3/4 |
549 |
99.8 |
644.4 |
158.8 |
124 |
124 |
SHC-17 |
75-80 |
3-1/8 |
656 |
125 |
688.9 |
171.5 |
133.6 |
133.4 |
SHC-18 |
82-86 |
3-1/4 |
750 |
142 |
743 |
184.2 |
146.1 |
146.1 |
SHC-19 |
88-92 |
3-1/2 |
820 |
181 |
787.4 |
196.9 |
165.1 |
158.8 |
SHC-20 |
94-102 |
3-3/4-4 |
1005 |
246 |
844.6 |
215.9 |
184.2 |
177.8 |
Sketch of US type wire rope close spelter socket
