DIN82607 Mooring Bollard
DIN 82607-1995 mooring bollard is a double bitt type bollard. It is used for port mooring of the vessel. DIN82607 has six standard types for customer¡¯s choice: 1¡±, 2¡±, 3¡±, 5¡±, 8¡±, 12¡±, 20¡±, 32¡±. We can also supply the customized bollards according to customer¡¯s drawings. We supply other types of marine bollards as well: cross bollard (single cross and double cross), single bitt bollard, double bitt bollard, welded inclined bollard, CVI-Bollard, horn type bollard, kidney type bollard, T-head bollard and so on. If you¡¯re interested in our products, please feel free to contact us.
Features of DIN82607 Mooring Bollard
1. Mooring Double/Twin Bollard;
2. Type: 1¡±,2¡±,3¡±,5¡±,8¡±,12¡±,20¡±,32¡±;
3. Max. Towing Load: 10,20,32,50,80,120,200,320;
4. Weight: 21 to 770kg;
5. Industrial Standard: DIN82607-1995;
6. Material: cast steel;
7. Finish:2 coats epoxy-zinc primer ;
8. 1 year warranty;
9. Get approval of CCS,ABS,BV etc.
10. Can be customized according to customer¡¯s drawing

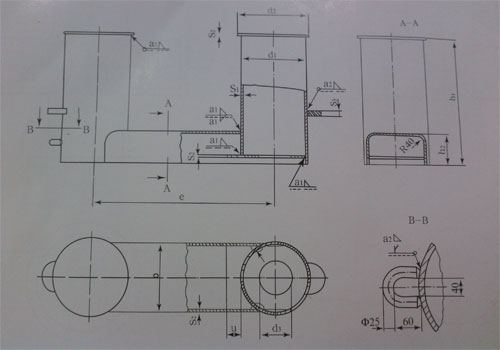

Drawing of DIN82607 Mooring Bollard
Unit:mm
Type |
Max. Towing Load |
d1 ¡Ás1 |
b |
d2 |
d3 |
e¡À10 |
h1 |
h2 |
s2 |
s3 |
u |
|
Weight(kg) ¡Ö |
|
a1 |
a2 |
|||||||||||||
1 |
10 |
139.7¡Á6.3 |
130 |
160 |
- |
430 |
370 |
105 |
5 |
18 |
- |
3.5 |
4 |
21 |
2 |
20 |
219.1¡Á8 |
180 |
240 |
- |
570 |
475 |
115 |
6 |
- |
53 |
|||
3 |
32 |
273¡Á10 |
250 |
300 |
- |
700 |
570 |
150 |
8 |
25 |
- |
4 |
102 |
|
5 |
50 |
323.9¡Á10 |
300 |
355 |
150 |
880 |
670 |
175 |
70 |
146 |
||||
8 |
80 |
355.6¡Á14.2 |
330 |
390 |
170 |
1050 |
70 |
195 |
10 |
80 |
5 |
255 |
||
12 |
120 |
457¡Á16 |
420 |
490 |
210 |
1200 |
860 |
230 |
16 |
35 |
90 |
6 |
456 |
|
20 |
200 |
508¡Á17.5 |
470 |
545 |
235 |
1350 |
970 |
270 |
100 |
7 |
616 |
|||
32 |
320 |
559¡Á20 |
530 |
600 |
255 |
1400 |
1000 |
|
110 |
770 |
