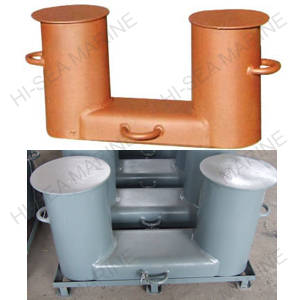

NS2584 Double Bollard
1. Type: double bitt marine bollard;
2. Standard: NS2584
3. Material: cast steel;
4. Nominal Dimension: 125 to 710mm;
5. Weight: 26 to 1532kg;
6. Smooth surface without burs or sharp edges;
7. Application: welded on deck for mooring and towing operation;
8. Certificate: CCS,ABS,BV,LR etc.
9. Can be customized

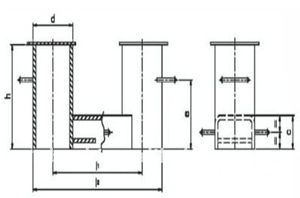

Drawing of NS2584 Double Bollard
NS2584 Double bollards
Type
|
F | Dimension(mm) | Weight(kg) | ||||||
M | T | D | C | E | H | L1 | L2 | ||
125 | 4.5 | 13.2 | 140 | 80 | 165 | 250 | 315 | 455 | 26 |
160 | 5.6 | 15.8 | 168 | 90 | 195 | 300 | 400 | 568 | 37 |
200 | 10.2 | 29 | 219 | 100 | 250 | 400 | 500 | 719 | 75 |
250 | 13.2 | 37.2 | 273 | 125 | 315 | 500 | 630 | 903 | 124 |
315 | 20.9 | 55 | 324 | 150 | 375 | 600 | 800 | 1124 | 230 |
400 | 28.5 | 75.4 | 406 | 175 | 435 | 700 | 1000 | 1406 | 356 |
500 | 52 | 123.6 | 508 | 200 | 515 | 830 | 1250 | 1758 | 723 |
630 | 62.7 | 158.1 | 610 | 225 | 615 | 1000 | 1570 | 2180 | 1084 |
710 | 83.1 | 219.3 | 711 | 250 | 675 | 1100 | 1750 | 2461 | 1532 |
