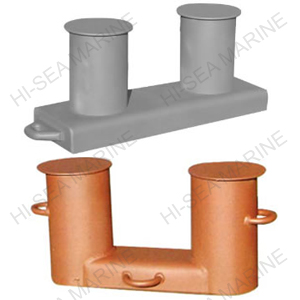

Jis F2001 Double Bollard
[Search Related Products]
Features of Jis F2001 Double Bollard
1. Material: cast steel, cast iron, ductile iron;
2. Standard: JIS F2001-1990;
3. Nominal Diameters: 100mm to 800mm;
4. Weight: 18.9kg to 3071kg;
5. Applicable Ropes: wire rope, manila and sisal fiber rope, synthetic rope;
6. High quality,without any defects such as cracks,air hole etc.;
7. One year quality warranty;
8. Certificate: CCS, ABS, BV,LR etc.;
9. Can be customized.

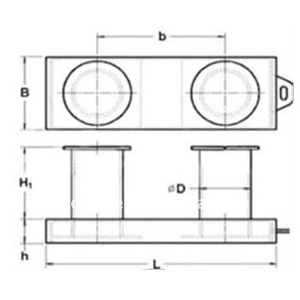

Drawing of Jis F2001 Bollard
JIS F2001 Double bollard
Nominal |
Dimension(mm) |
Max.B.L.
|
Weight(kgs) |
SWL |
|||||
Dia.(mm) |
D |
H1 |
b |
B |
L |
h |
of Rope(Tonne) |
||
100 |
114 |
150 |
250 |
165 |
445 |
50 |
3 |
19 |
3T |
125 |
139 |
190 |
315 |
195 |
540 |
60 |
4 |
29 |
4T |
160 |
165 |
250 |
400 |
225 |
670 |
70 |
5 |
45 |
5T |
200 |
216 |
300 |
500 |
290 |
860 |
85 |
8 |
80 |
8T |
250 |
267 |
380 |
630 |
360 |
1065 |
100 |
12 |
139 |
12T |
315 |
318 |
480 |
800 |
430 |
1300 |
125 |
20 |
261 |
20T |
355 |
355 |
530 |
890 |
480 |
1475 |
145 |
26 |
361 |
26T |
400 |
406 |
600 |
1000 |
550 |
1630 |
160 |
32 |
502 |
35T |
450 |
457 |
680 |
1130 |
620 |
1840 |
170 |
39 |
685 |
40T |
500 |
508 |
750 |
1250 |
690 |
2040 |
190 |
46 |
911 |
46T |
560 |
558 |
830 |
1380 |
750 |
2240 |
210 |
56 |
1208 |
64T |
630 |
609 |
940 |
1570 |
820 |
2510 |
225 |
70 |
1600 |
70T |
710 |
711 |
1050 |
1750 |
960 |
2840 |
260 |
82 |
2252 |
82T |
800 |
812 |
1200 |
2000 |
1100 |
3240 |
295 |
100 |
3071 |
100T |
