Horn Type Bollard

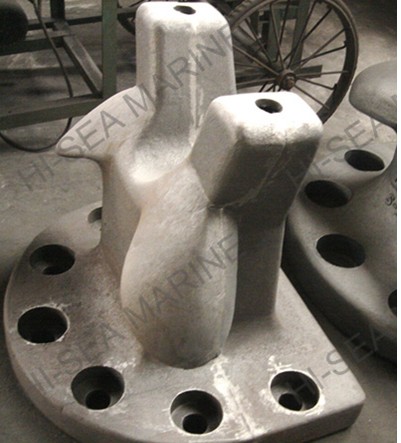

Horn type bollard are one most commonly used type of dock bollards. Its special horn shape can help more effectively fasten the rope and aviod releasing. We also supply other types of bollards: single bitt bollard, double bitt bollard, cross bitt bollard, T-head type bollard, R type bollard, kidney type bollard, welded inclined bollard, DIN82607 bollard, JIS F2001 bollard, JIS F2804 ship cross bollard etc. We can produce the customized bollards according to your special requirements. For more information, please feel free to contact us.

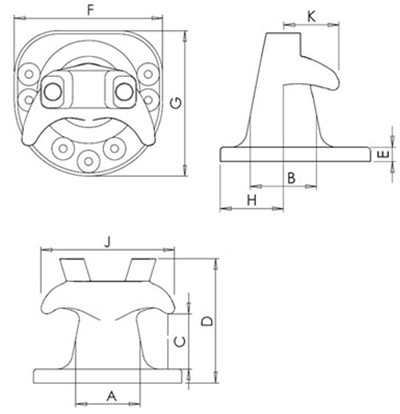

Drawing of Horn Type Bollard
Bolts
Qty |
Capacity
(Tonnes) |
Dinmensions (mm) |
|||||||||
A | B | C | D | E | F | G | H | J | K | ||
5 | 40 | 205 | 205 | 160 | 425 | 50 | 480 | 410 | 165 | 460 | 165 |
5 | 90 | 300 | 300 | 198 | 510 | 70 | 650 | 650 | 280 | 600 | 230 |
7 | 200 | 360 | 360 | 200 | 660 | 100 | 970 | 840 | 356 | 760 | 240 |
6 | 200 | 360 | 360 | 200 | 620 | 80 | 780 | 760 | 356 | 760 | 240 |
7 | 300 | 440 | 440 | 305 | 685 | 85 | 920 | 900 | 380 | 840 | 280 |
