Type USA Mooring Bollard
[Search Related Products]
Type U.S.A Mooring Bollard
Type U.S.A mooring bollard is one type of double bitt mooring bollard. It has two nominal diameters DF-491, DF-498. Except U.S type bollard, we supply a large number of other standard marine bollards: JIS F2001 bollard, DIN82607 bollard, GB554-83 bollard, GB554-96 bollard (simple bollard, inserted bollard, cross bollard), GB556-65 welded inclined bollard, GB/T 10106-88 cross bitts, CVI bollard, dock bollard etc. If you¡¯re interested in our products, please feel free to contact us.
Features of Type U.S.A Bollard
1. Nominal Diameters: DF-491, DF-498;
2. Weight: 449kg, 612kg;
3. Size: see the specification form below;
4. Material: cast steel, cast iron;
5. Surface: Polished,galvanized;red, grey etc. optional color;
6. Certificate: CCS,ABS, LR, BV etc.;
7. Produce the customized bollards;

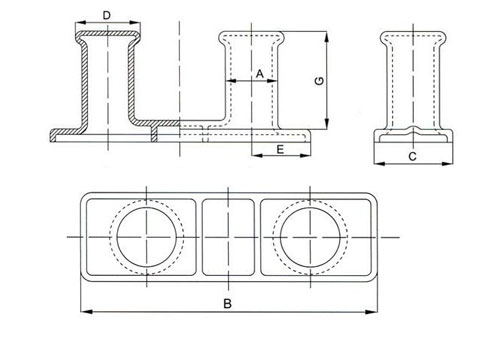

Drawing of Type U.S.A Mooring Bollard
Nominal Dia. |
Weight(kg) |
Size(mm) |
|||||
A |
B |
C |
D |
E |
G |
||
DF-491 |
449 |
305 |
1524 |
457 |
381 |
343 |
571 |
DF-498 |
612 |
355 |
1676 |
533 |
444 |
330 |
667 |
