T type dock bollards


Features of T type Dock Bollard

1. Strong and durable design;

2. Material: cast steel,cast iron, ductile iron;

3. Bollard Capacity: 10 to 200 tonnes;

4. Bolts Quantity: 4 to 6;

5. Surface: polished, galvanized,smooth,anti-corrosion;

6. 15 to 20 years working time;

7. Warranty: 1 year;

8. Certificate: CCS,ABS,BV,LR etc.;

9. Custom made according to customer¡¯s drawing;

T type dock bollards

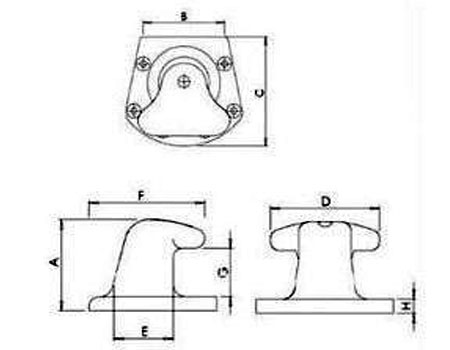

Drawing of T type Dock Bollard



Product No. Bolts Qty Capacity (Tonnes) Dimensions(mm)
A B C D E F G H
T-001 4 10 200 216 236 160 106 218 120 32
T-002 4 25 245 350 305 250 150 285 127 45
T-003 5 30 290 430 410 360 190 360 150 45
T-004 5 50 365 550 540 430 250 475 200 50
T-005 5 75 430 650 650 520 300 570 235 70
T-006 5 80 415 518 540 430 250 430 245 55
T-007 7 120 490 678 642 600 330 584 290 65
T-008 7 200 520 950 780 680 360 670 306 80
T-009 7 200 600 950 780 680 360 670 386 80
T-010 6 200 656 1020 930 800 460 830 349 100
