GB T556-65 Welded Inclined Bollard

GB556-65 Welded Inclined Bollard

GB556-65 Welded Inclined Bollard has two types: DH type and SH type. DH type bollard is single base plate welded oblique post bollard, and SH type is double base plates welded oblique post bollard. SH type and DH type welded inclined bollards are produced in line with standard GB556-65. Customers can feel assured to buy our bollards. For more information, please do not hesitate to contact us. We’ll give you a quick and satisfactory reply.

Features of GB556-65 Welded Inclined Bollard

1. Type: DH type and SH type welded inclined bollard;

2. Apllicable Rope Types: wire rope and hemp rope;

3. Material: Cast steel;

4. Size: determined by customer;

5. Surface: bitumen paint;

6. Color: red, black, grey etc. For customer’s choice;

7. Certificate: CCS, ABS, BV,LR etc.

8. Can be produced according to customer’s drawings;

GB T556-65 Welded Inclined Bollard

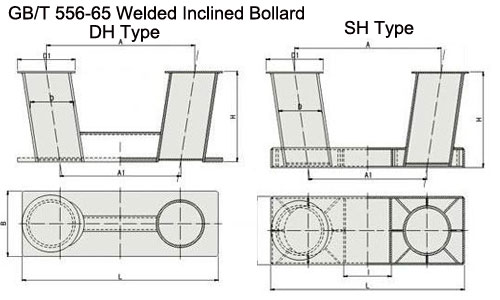

Drawing of GB T556-65 Welded Inclined Bollard

Unit:mm

Type	Max. Diameter of Wire Ropes	Max. Dia. Of Hemp Ropes	D	D1	L	B	A	A1	H	t	Weight(kg)
DH	8.7	75	50	65	310	100	205	166	170	6	5.0
	11.5	90	75	90	430	125	296	238	215	7	11.5
	13.5	100	100	115	540	160	364	290	240	7	19.2
SH	15.5	125	125	140	660	170	458	380	295	8	25.2
	17.5	150	150	165	750	200	525	432	348	8	33.3
	19.5	170	175	190	850	235	630	524	394	9	49.2
	22.5	200	200	220	950	270	676	564	436	10	68.8
	26.0	225	250	270	1150	340	765	640	540	12	95.7

Note for SH type: Value H in the sheet applies only to steel deck and should be increased by 50mm if it is used on wooden decks.

Example of Designation:

Single base plate welded oblique post bollard with column piles in diameter of 75mm:

Bollard bitt DH75 GB556-65
