Recessed Bitts
1. Inset into the ship¡¯s hull
2. Material: High Quality Steel
3. Nominal Sizes: 850mm,920mm
4. Application: commonly used on vessels using the Panama and Suez Canal or where the rope needs to be attached to a ship¡¯s hull without any protrusion.

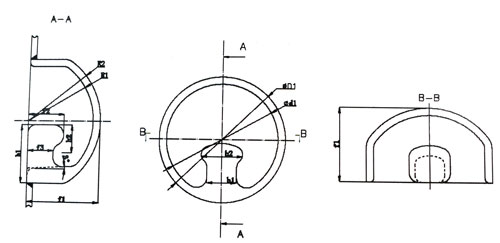

Drawing of Recessed Bitts
Specifications (Unit:mm)
Nominal Size Dn |
D1 |
d1 |
b1 |
b2 |
R1 |
R2 |
f1 |
f2 |
f3 |
h1 |
h2 |
type |
Material |
SWL KN |
Calculated Weight (KG) |
850 |
850 |
750 |
200 |
280 |
450 |
500 |
500 |
250 |
180 |
400 |
190 |
75 |
235N/mm² |
736 |
770 |
850 |
850 |
750 |
200 |
280 |
450 |
500 |
500 |
250 |
180 |
400 |
190 |
110 |
350N/mm² |
1079 |
770 |
850 |
850 |
750 |
200 |
280 |
450 |
500 |
500 |
250 |
180 |
400 |
190 |
135 |
430N/mm² |
1324 |
770 |
920 |
920 |
812 |
216 |
300 |
490 |
544 |
544 |
270 |
195 |
430 |
205 |
100 |
235N/mm² |
981 |
826 |
920 |
920 |
812 |
216 |
300 |
490 |
544 |
544 |
270 |
195 |
430 |
205 |
150 |
350N/mm² |
1472 |
826 |
920 |
920 |
812 |
216 |
300 |
490 |
544 |
544 |
270 |
195 |
430 |
205 |
180 |
430N/mm² |
1766 |
826 |
Note: we're a professional marine equipment supplier, providing a large variety of bollards to suit your particular needs. If you're interested in our products, please feel free to contact us.
