R CVI Type Bollard
1. 8 Specifications: 10กฏ,20กฏ,30กฏ,50กฏ,75กฏ,100กฏ,150กฏ,200กฏ;
2. Safe Working Load: 10T to 200T;
3. Material: cast steel;
4. Epoxy primer surface treatment;
5. 10 to 15 working years;
6. Quality controlled, approved by ISO9001,CCS,ABS etc.;
7. Prompt delivery, competitive price and excellent after-sale service;
8. Customized.

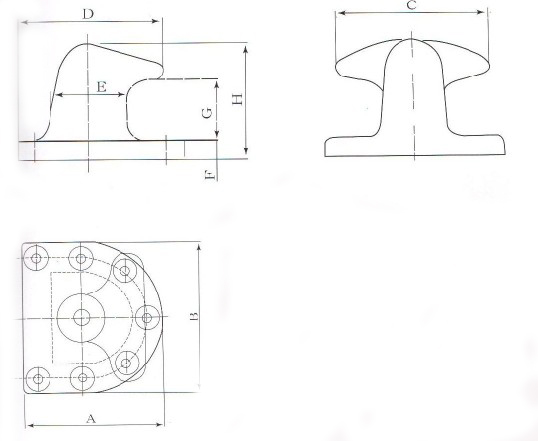

Drawing of R CVI-Bollard
Type | S.WL(T) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) |
CVI-10 | 10 | 540 | 600 | 460 | 475 | 250 | 40 | 190 | 360 |
CVI-20 | 20 | 540 | 600 | 460 | 475 | 250 | 50 | 190 | 370 |
CVI-30 | 30 | 540 | 600 | 460 | 475 | 250 | 60 | 190 | 380 |
CVI-50 | 50 | 650 | 700 | 600 | 570 | 300 | 80 | 230 | 450 |
CVI-75 | 75 | 670 | 800 | 650 | 620 | 340 | 90 | 260 | 510 |
CVI-100 | 100 | 810 | 1000 | 750 | 710 | 381 | 100 | 300 | 560 |
CVI-150 | 150 | 810 | 1000 | 750 | 710 | 381 | 100 | 306 | 600 |
CVI-200 | 200 | 800 | 1080 | 800 | 700 | 430 | 110 | 396 | 600 |
