Single Bitt Bollard

Single Bitt Bollard

Single bitt bollard is one commonly used style of mooring dock bollards. We also supply other styles of bollards: Double bitt bollard, T-head bollard, Staghorn shaped bollard, Kidney shaped bollard, R CVI type bollard, Y type bollard etc. Providing high quality products, competitive price, excellent service is our company’s aim. For specific information, please feel free to contact us.

Features of Single Bitt Bollard

1. Bollard Capacity: 20 to 200 tonnes;

2. Bolts Quantity: 4 to 8;

3. Material Type: Cast steel, cast iron, cast SG iron;

4. Technology Data: the safe factor of bollard is 3 time. The face angle of cable :-45~+45 (vertical), 0~1800 (horizontal)

5. Finishing paint: depend on the need of dock, multiple color for optional;

6. 1 Year Quality Guarantee;

7. Classification Certificate: CCS,ABS, GL,NK etc.

8. Able to be customized

Single Bitt Bollard

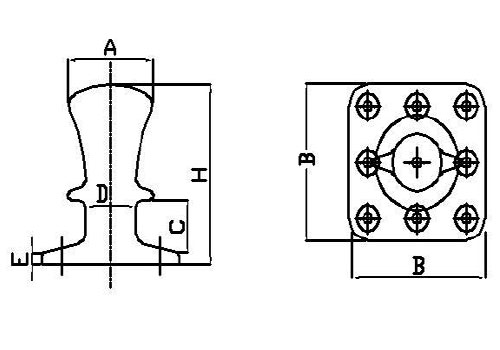

Drawing of Single Bitt Bollard

Unit:mm

Capacity(tonnes)	Type	A	B	C	D	E	Bolts No.
20	SBD20	400	660	290	260	65	4
30	SBD30	400	660	290	260	65	4
50	SBD50	400	600	200	300	70	4
75	SBD75	440	700	340	330	85	4
100	SBD100	540	900	365	350	95	8
150	SBD150	610	900	340	420	120	8
200	SBD200	680	900	350	480	120	8
