GB T554-96 Type A Bollard
GB/T 554-96 type A bollard is an ordinary double bitts bollard with a base. We also supply other types of standard GB/T 554-96 bollards: type B inserted, type C simple bollard, type D single cross bollard, type E double cross bollard. Other types of bollards such as GB/T10106-88 bollard, DIN82607-1995 bollard, CVI-bollard, dock bollards etc. are available. If you want to know more about our products, please feel free to contact us.
Features of GB T554-96 Type A Bollard
1. Double bitts bollard with base;
2. Nominal Diameter: 100 to 800mm;
3. Weight: 19 to 307kg;
4. Applicable Ropes: wire rope, hemp rope, synthetic fiber rope;
5. Material: cast steel, cast iron, ductile iron;
6. Color: red, black, grey etc.;
7. Epoxy coating;
8. Certificate: CCS, ABS, BV etc.;
9. Can supply customized bollards according to special requirements;

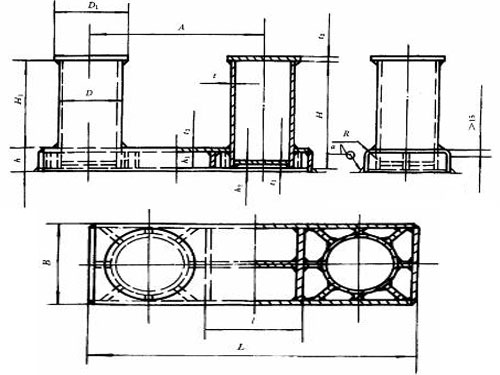

Drawing of GB T554-96 Type A Bollard
Unit:mm
Nominal Dia. |
Max. Breaking Load KN |
Max. Diameter of Applicable Rope |
D |
D1 |
H |
A |
tmin |
B |
L |
hmin |
l |
Weight (kg) |
||||
Steel Rope |
Hemp Rope |
Synthetic Carbon Fiber Rope |
||||||||||||||
6กม24 |
6กม30 |
6กม37 |
||||||||||||||
100 |
29 |
7.4 |
8.7 |
- |
63 |
14 |
114 |
145 |
196 |
250 |
10 |
165 |
445 |
50 |
70 |
19 |
125 |
39 |
9.3 |
8.7 |
8.7 |
75 |
18 |
140 |
180 |
246 |
315 |
10 |
195 |
540 |
60 |
100 |
29 |
160 |
49 |
9.3 |
11.0 |
8.7 |
90 |
20 |
168 |
210 |
316 |
400 |
10 |
225 |
670 |
70 |
145 |
45 |
200 |
78 |
13.0 |
13.0 |
13.0 |
110 |
26 |
219 |
270 |
378 |
600 |
10 |
290 |
860 |
85 |
160 |
80 |
250 |
118 |
15.0 |
15.0 |
15.0 |
130 |
30 |
273 |
335 |
470 |
630 |
11 |
360 |
1065 |
100 |
215 |
141 |
315 |
196 |
20.5 |
20.5 |
19.5 |
170 |
39 |
325 |
390 |
597 |
800 |
15 |
430 |
1300 |
125 |
325 |
264 |
355 |
255 |
24.0 |
24.0 |
19.5 |
200 |
45 |
351 |
420 |
663 |
890 |
17 |
480 |
1475 |
145 |
360 |
358 |
400 |
314 |
26.0 |
26.0 |
24.0 |
235 |
53 |
402 |
480 |
749 |
1000 |
18 |
550 |
1630 |
160 |
400 |
499 |
450 |
382 |
30.0 |
30.0 |
28.0 |
250 |
56 |
450 |
545 |
841 |
1130 |
19 |
620 |
1840 |
170 |
450 |
680 |
500 |
451 |
32.0 |
32.0 |
30.01025 |
280 |
64 |
508 |
610 |
928 |
1250 |
20 |
690 |
2040 |
190 |
500 |
911 |
560 |
549 |
33.5 |
33.5 |
32.5 |
315 |
70 |
560 |
670 |
1025 |
1380 |
22 |
750 |
2240 |
210 |
560 |
1208 |
630 |
686 |
37.5 |
37.5 |
36.5 |
345 |
77 |
610 |
730 |
1152 |
1570 |
24 |
820 |
2510 |
225 |
680 |
1601 |
710 |
804 |
41.0 |
41.0 |
39.0 |
375 |
84 |
712 |
840 |
1294 |
1750 |
25 |
960 |
2840 |
260 |
710 |
2252 |
800 |
981 |
44.5 |
44.5 |
43.0 |
- |
- |
813 |
940 |
1480 |
2000 |
26 |
1100 |
3210 |
295 |
810 |
3071 |
Note: 1. Steel Rope Standard GB1102-74, Tensile Strength 1520N/mm²
2. Weight Calculated according to the Base Height hmin
