GB T554-96 Type E Double Cross Bollard
GB T554-96 Type E Double Cross Bollard is one type of GB/T 554-96 bollard. We also supply other four types: type A ordinary bollard, type B inserted bollard, type C simple bollard, type D single cross bollard. Each type has its special features for vessels to be docked at the seaside. If you want to know more, please feel free to contact us.
Features of GB T554-96 Type E Double Cross Bollard
1. Nominal Diameter: 50 to 300mm;
2. Bolts Quantity: 6;
3. Weight: 7 to 576kg
4. Applicable Ropes: wire rope, hemp rope, synthetic fiber rope;
5. High corrosion resistance;
6. Durable,long lifetime;
7. Certificate: CCS,ABS,BV,LR etc.

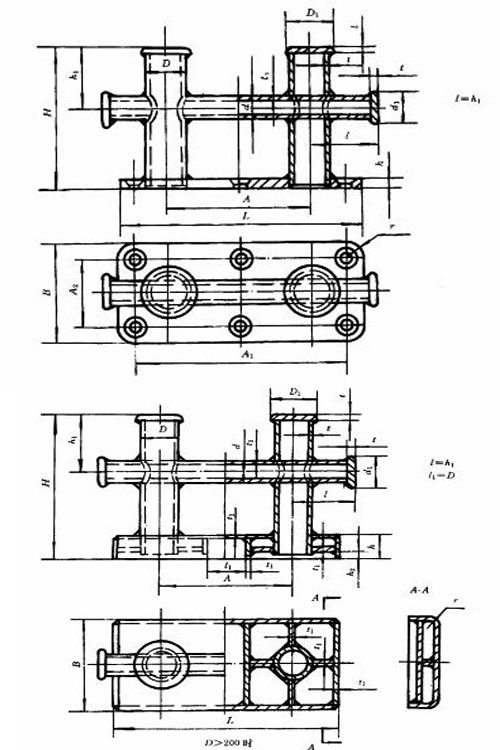

Drawing of GB T554-96 Type E Double Cross Bollard
Unit:mm
Nominal Dia. |
Max. Dia. of Steel Rope |
Max. Dia. of Hemp Rope |
Max. Dia. of Synthetic Carbon Fiber Rope |
D |
D1 |
L |
B |
H |
h |
h1 |
h2 |
t |
t1 |
d |
d1 |
r |
A |
A1 |
A2 |
Screw |
Weight(kg) |
|
Screw Thread Dia. |
Quantity(piece) |
|||||||||||||||||||||
50 |
8.7 |
75 |
16 |
50 |
65 |
310 |
130 |
190 |
8 |
85 |
- |
6 |
4 |
32 |
40 |
20 |
180 |
270 |
90 |
M12 |
6 |
7 |
75 |
11.5 |
90 |
20 |
75 |
95 |
450 |
170 |
290 |
10 |
130 |
- |
7 |
5 |
48 |
56 |
25 |
275 |
400 |
400 |
M16 |
6 |
16 |
100 |
13.5 |
100 |
24 |
100 |
120 |
550 |
200 |
350 |
12 |
160 |
- |
7 |
5 |
65 |
75 |
28 |
350 |
494 |
494 |
M18 |
6 |
27 |
125 |
15.5 |
125 |
28 |
125 |
145 |
660 |
240 |
425 |
14 |
195 |
- |
9 |
7 |
80 |
95 |
35 |
425 |
590 |
590 |
M22 |
6 |
49 |
150 |
17.5 |
150 |
30 |
150 |
170 |
770 |
270 |
500 |
16 |
210 |
- |
9 |
7 |
90 |
110 |
35 |
500 |
700 |
700 |
M22 |
6 |
71 |
175 |
19.5 |
175 |
36 |
180 |
200 |
850 |
320 |
550 |
18 |
240 |
- |
10 |
8 |
110 |
125 |
38 |
530 |
774 |
774 |
M24 |
6 |
103 |
200 |
22.5 |
200 |
40 |
203 |
225 |
960 |
360 |
795 |
145 |
275 |
60 |
12 |
9 |
130 |
145 |
20 |
600 |
- |
- |
- |
- |
181 |
250 |
26.0 |
225 |
48 |
245 |
280 |
1200 |
450 |
855 |
155 |
350 |
60 |
14 |
12 |
159 |
180 |
25 |
750 |
- |
- |
- |
- |
310 |
300 |
30.5 |
250 |
56 |
290 |
330 |
1440 |
540 |
1160 |
180 |
420 |
73 |
16 |
14 |
194 |
215 |
30 |
900 |
- |
- |
- |
- |
576 |
Note: the value of H,h,h1 and weight when D=200~300mm only apply to steel deck. If bollard needs installing on the wood deck, the value of H,h,h2 each increased 50mm, and the weight increases correspondingly. |
