Mooring bollards have various types. They are different in shapes, load ratings and materials. Staghorn bollard is staghorn shaped type dock bollard. It is commonly used to guarante the security of marine vessels by mooring ropes. We also supply other shapes of dock bollards for your choice: T-head bolllard, kidney bollard, single bollard, double bitt bollard, single bitt bollard, R type bollard, CVI bollards or other standard making bollards. For more specific information, please email us.

Features of Staghorn Bollard

1. Bollard Capacity: 10 to 150 tonnes;

2. Bolts Quantity: 5 to 7;

3. Material Type: Cast steel, cast iron, ductile iron/SG iron;

4. High Corrosion Resistance;

5. Finish: Bituminous paint or other as customer required;

6. Applicable to steel rope angles;

7. Offer 1 year guarantee;

8. 10 to 30 years life span;

9. Certificate: CCS,ABS,GL,BV etc.

Staghorn Bollard

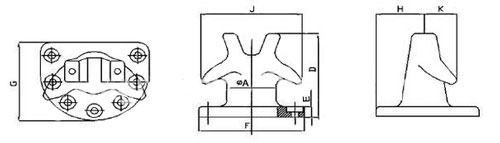

Drawing of Staghorn Bollard

Unit:mm

Capacity(tonnes)	A	D	E	F	G	H	J	K	Bolt No.
10	166	352	55	350	305	102	382	115	5
15	178	400	65	400	350	130	420	127	5
20	203	467	70	485	405	165	410	165	5
30	254	530	75	610	570	265	505	185	5
40	300	617	75	610	610	305	60	210	5
50	300	598	85	762	660	280	560	230	5
60	300	604	70	762	660	280	560	230	6
75	355	742	95	850	725	305	760	240	7
100	360	774	115	965	840	356	760	240	7
150	430	850	115	1015	915	380	840	280	7
