VIS1 Double Bollards
[Search Related Products]
VIS1 Double Bollard
Marine bollards include N.S double bollards, B.S.M.A.12 double bollards, VIS1 double bollards, DIN82607 double bollards, JIS F2001 double bollards, single bollards, single cruciform bollards, double cruciform bollards, welded inclined bollards, kidney type bollard, T head bollard, staghorn type bollard, CVI-Bollard and so on. Bollard materials are steel, iron, ductile iron or stainless steel for customer¡¯s choice. We can offer ISO9001, CCS, ABS, BV,DNV or other certificates for every bollard. For more information, please feel free to contact us.

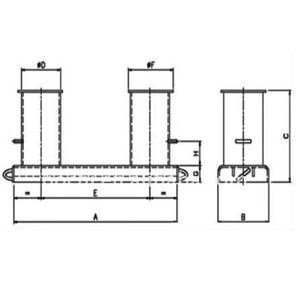

Drawing of VIS1 Double Bollard
Type | F | Dimension(mm) | Weight(kg) | |||||||
A | B | C | D | E | F | G | H | |||
100 | 5 | 600 | 210 | 310 | 114 | 350 | 145 | 100 | 65 | 36 |
150 | 10 | 800 | 260 | 385 | 168 | 500 | 205 | 100 | 90 | 59 |
200 | 15.5 | 950 | 330 | 460 | 219 | 600 | 255 | 100 | 115 | 98 |
230 | 17 | 1030 | 350 | 470 | 244 | 680 | 300 | 100 | 120 | 113 |
250 | 20 | 1150 | 370 | 520 | 273 | 750 | 320 | 110 | 130 | 135 |
300 | 28 | 1350 | 420 | 597 | 324 | 900 | 370 | 110 | 155 | 210 |
350 | 32 | 1500 | 470 | 657 | 356 | 1000 | 405 | 110 | 175 | 328 |
400 | 40 | 1650 | 540 | 740 | 406 | 1100 | 450 | 125 | 200 | 418 |
450 | 54 | 1800 | 600 | 790 | 457 | 1200 | 510 | 125 | 215 | 499 |
500 | 60 | 1950 | 650 | 840 | 508 | 1300 | 560 | 125 | 230 | 586 |
550 | 68 | 2100 | 700 | 890 | 559 | 1400 | 610 | 125 | 250 | 684 |
600 | 80 | 2270 | 770 | 945 | 612 | 1500 | 660 | 125 | 270 | 900 |
