GB554-83 Bollard

Marine Bollard

Marine bollard is one type of marine hardware that is installed on the dock for mooring ropes. It is an important marine hardware equipment that make sure the security of ships. As a professional golden supplier, we provide a great amount of marine bollards which are not only the standard bollards but also the customized bollards as customers require. For more product information, please feel free to contact us.

Features of GB554-83 Bollard

1. Material: cast steel;

2. Double bitt bollard;

3. Technic Standard: GB554-83;

4. Nominal Diameters:100 to 800mm;

5. Weight: 19 to 3071kg;

6. Epoxy coating, bitumen paint, anti-corrasion;

7. Marine Classification Certificate: ABS, CCS etc.

8. Can produce according to customer¡¯s design;

GB554-83 Bollard

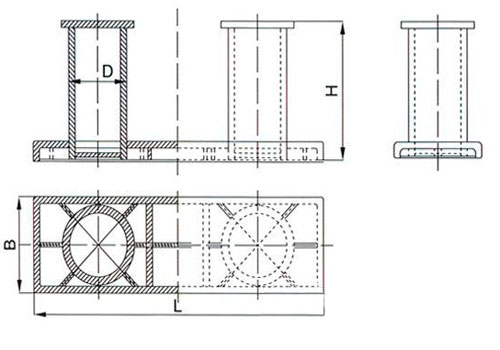

Drawing of GB554-83 Bollard

Nominal Dia.

Weight(kg)

Size(mm)

D

L

B

H

100

19

114

445

165

196

125

29

140

540

195

246

160

45

168

670

225

316

200

80

219

860

290

378

250

141

273

1065

360

470

315

264

325

1300

430

597

355

358

351

1475

480

663

400

499

402

1630

550

749

450

680

450

1840

620

841

500

911

508

2040

690

928

560

1208

560

2240

750

1025

630

1601

610

2510

820

1152

710

2252

712

2840

960

1294

800

3071

813

3240

1100

1480
